SKU:WSAL32328

Waveshare MK10 Multi-Functional AI Voice Control Panel, Onboard 10 × 0.85inch Mechanical LCD Macro Keys And A 2.01inch Secondary Screen, Linux + QMK Dual-system Architecture, Stream Controller Deck, Stream Accessories

Name: Waveshare MK10 Multi-Functional AI Voice Control Panel, Onboard 10 × 0.85inch Mechanical LCD Macro Keys And A 2.01inch Secondary Screen, Linux + QMK Dual-system Architecture, Stream Controller Deck, Stream Accessories
Brand: WaveShare
SKU: WSAL32328
Price: 31602.0 HUF
Availability: InStock

31.602 Ft

31.602 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

Waveshare MK10 Multi-Functional AI Voice Control Panel, Onboard 10 × 0.85inch Mechanical LCD Macro Keys And A 2.01inch secondary screen, Supports Linux + QMK Dual-system Architecture

Waveshare MK10 Multi-Functional AI Voice Control Panel

Waveshare MK10 Multi-Functional AI Voice Control Panel, feature introduction

Color Options

MK10 WWhite color

MK10 BBlack color

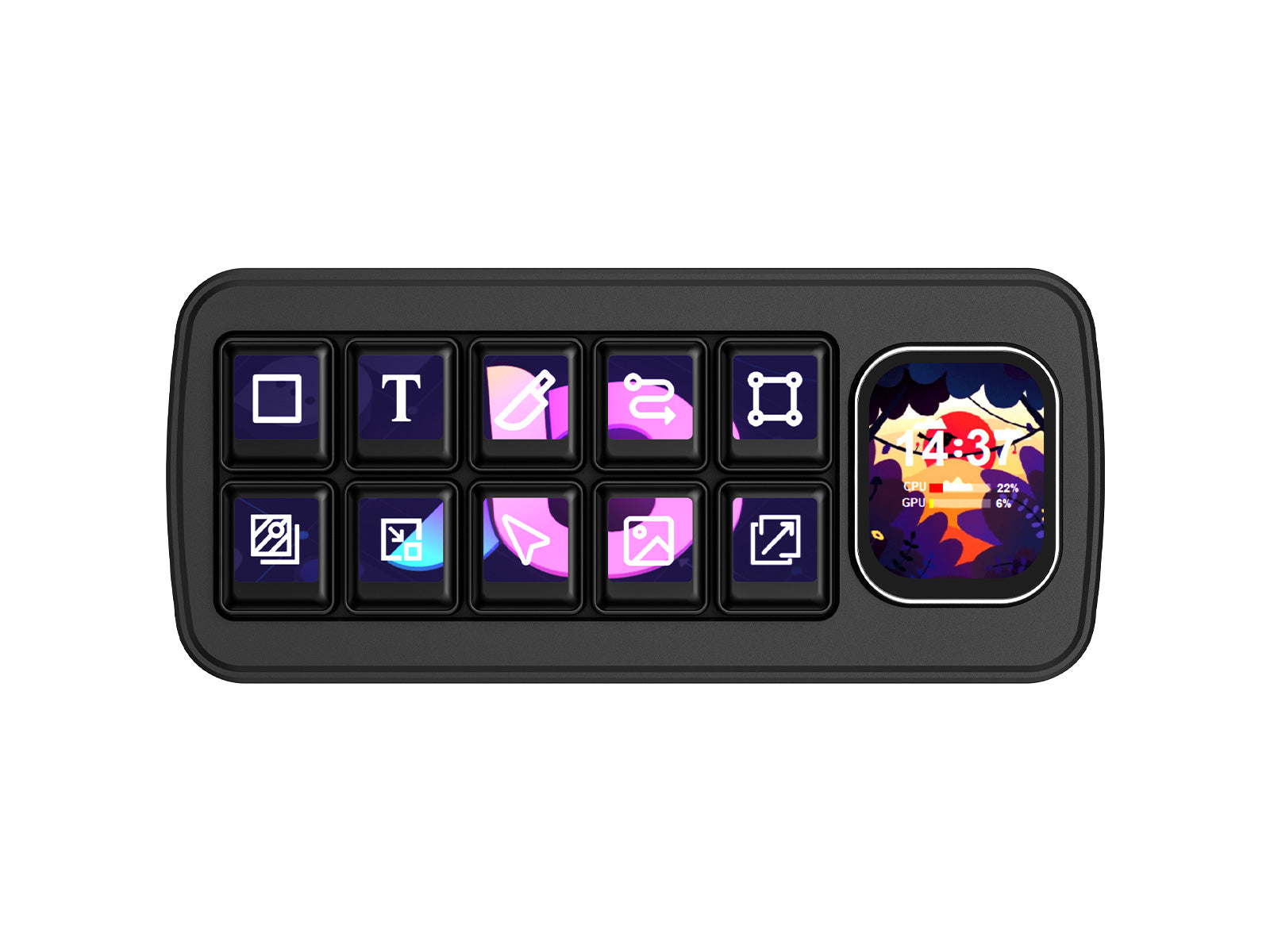

Multi-screen display, high flexibility

10 × 0.85inch 128 × 128 resolution mechanical LCD Keys with a 2.01inch 240 × 296 resolution secondary screen, enabling highly flexible configuration

Waveshare MK10 Multi-Functional AI Voice Control Panel, onboard multiple LCDs

Supports 10-screen splicing display

The background supports images / videos and allows multi-layer overlay

Mechanical switches for Better Tactile Experience

Waveshare MK10 Multi-Functional AI Voice Control Panel, adopts mechanical switches

Actuation Force	50±10gf	Bottom-out Force	55±10gf
Actuation Travel	1.2±0.30mm	Total Travel	2.8±0.25mm
Spring Length	15.5mm	Lifespan	50 million times

* for reference only, please refer to the package content for the detailed part list.

Linux + QMK dual-system architecture

Main Controller: T113-S3 (Dual-core A7, 1.2GHz), running Linux for complex logic processing
Sub-Controller: GD32 MCU, running QMK to deliver a zero-latency true mechanical input experience
Function: Single key / key combinations / macro operations, mouse control, and multi-command chaining — all natively implemented in QMK without PC software

Compatible with multiple platforms

Supports Windows / MacOS systems. Built-in theme editor: drag-and-drop editing, no coding required

Real-time dynamic preview

Supports import / export functionality, allowing you to share your configurations and themes

Two placement methods

Waveshare MK10 Multi-Functional AI Voice Control Panel, placement method using 40° detachable stand

Using 40° Detachable StandTriangular support design for comfortable long-term use

Waveshare MK10 Multi-Functional AI Voice Control Panel, placement method on the desktop

5.5° Desktop Flat PlacementTwo placement options for flexible choice

Rich Resources, Supports Online Expansion

Provides an online platform for downloading themes and plugins, with continuous updates

Waveshare MK10 Multi-Functional AI Voice Control Panel, with rich resources online

Supports Real-Time Data Integration in Themes

Supports real-time data calls from LibreHardwareMonitor and OpenWeather LibreHardwareMonitor: Real-time display of CPU temperature, fan speed, and other hardware informationOpenWeather: Integrates weather data for dynamic background display

Supports Speech recognition and AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc

Supports Wireless Smart Home Control (HA)

Integrates with Home Assistant (HA) for one-touch smart home control

Waveshare MK10 Multi-Functional AI Voice Control Panel, supports wireless Smart Home control

Application Scenarios

Live Streaming

Office Assistant

Image Editing

Gaming Controls

Balanced Technology and Premium Feel

Aluminum Alloy Top Case: Sturdy and durable, with a high-quality finish2.5D High-Transparency Acrylic Lens: Hardened and anti-scratch treatment (> 3H hardness)
