Waveshare Orin Nano/NX Base Board Based on Jetson Orin Nano and Jetson Orin NX module

Name: Waveshare Orin Nano/NX Base Board Based on Jetson Orin Nano and Jetson Orin NX module
Brand: WaveShare
SKU: WSAL24726
Price: 40632.46 HUF
Availability: InStock

40.632 Ft

40.632 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

This product is the base board only. Please purchase the Orin Module separately.

Jetson Orin Nano/NX AI Base Board, Waveshare Orin Nano/NX Base Board Based on Jetson Orin Nano and Jetson Orin NX module

JETSON-ORIN-IO-BASE

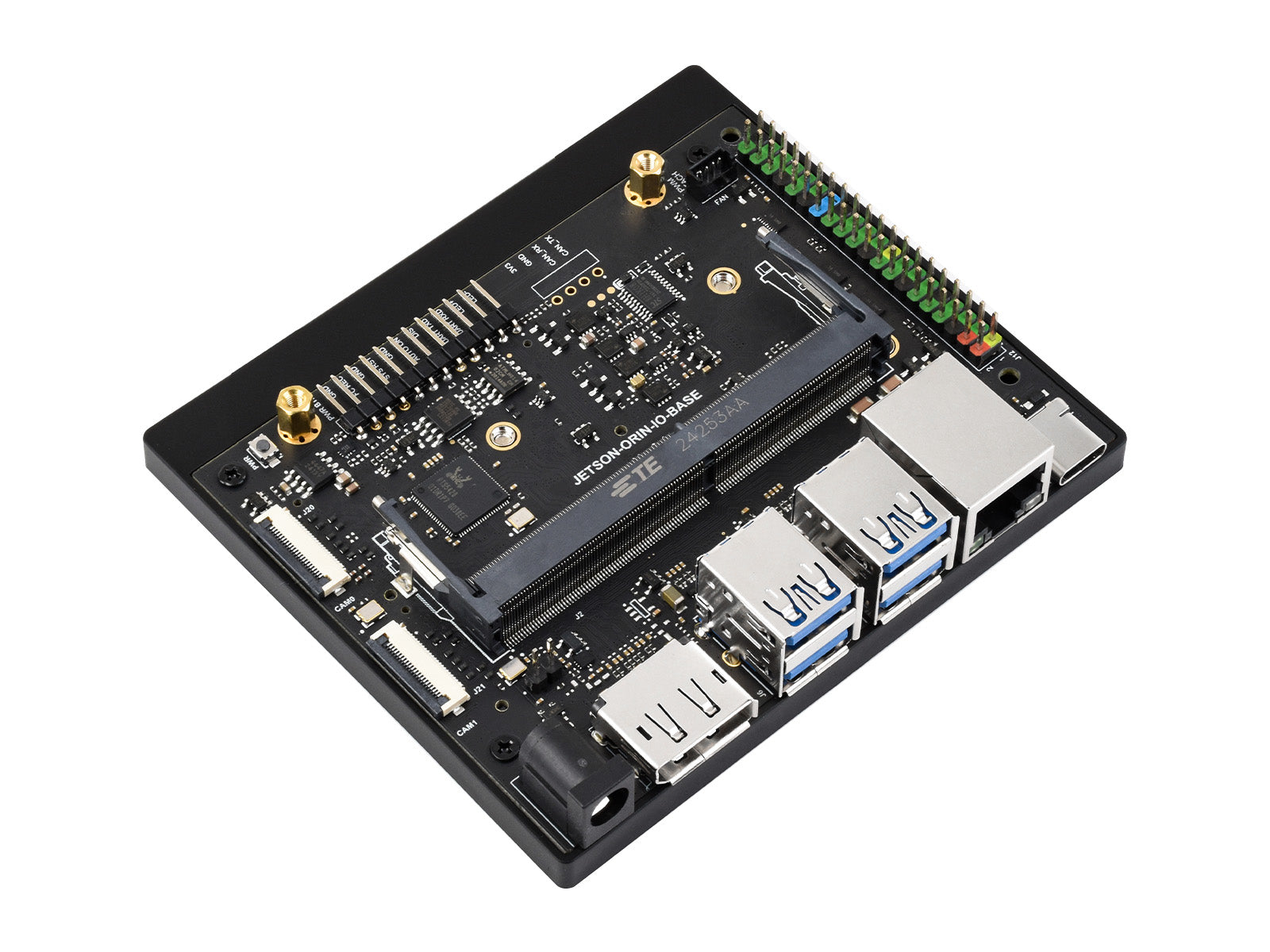

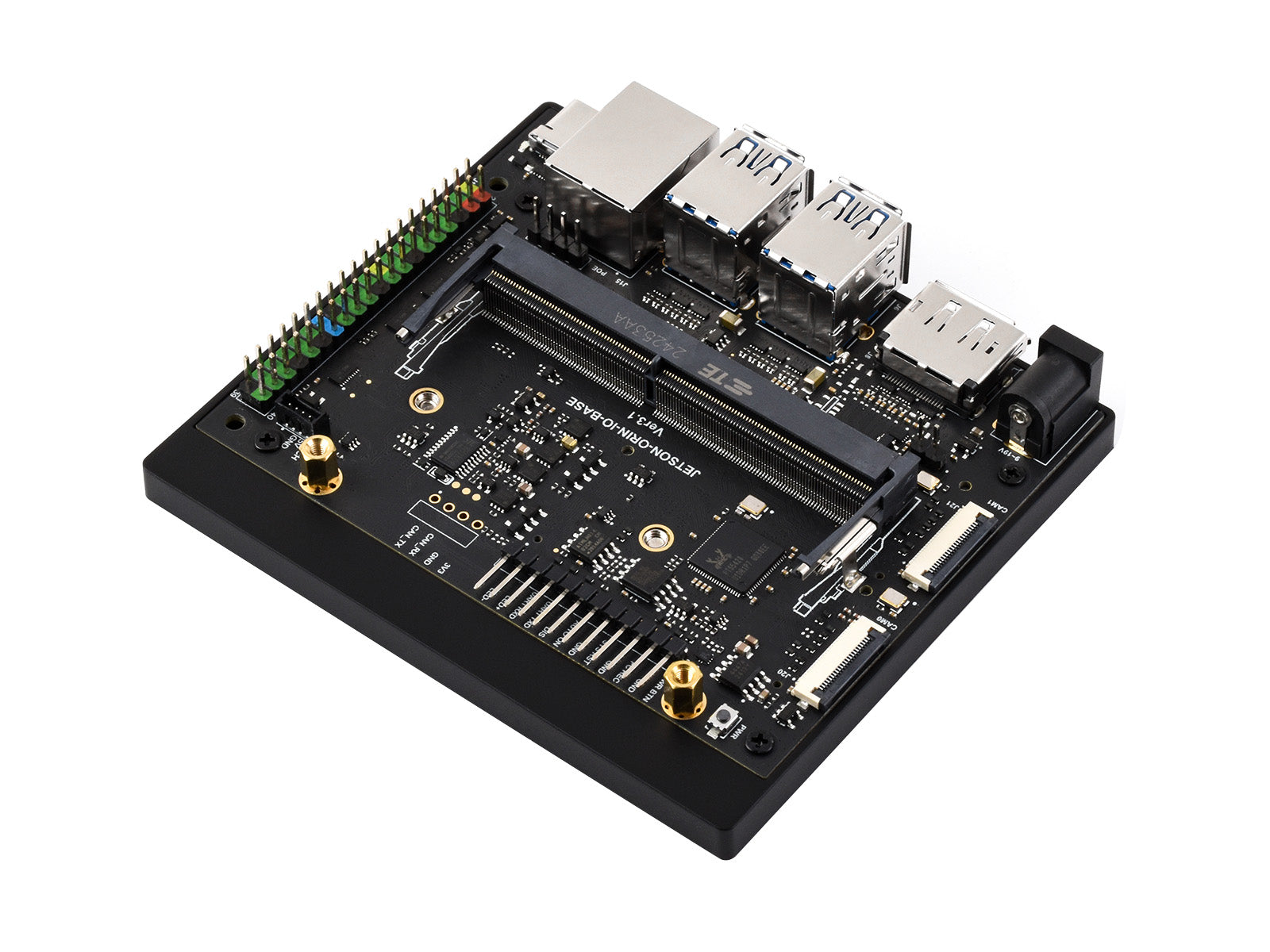

Waveshare Jetson Orin Nano/NX Base Board

Based on Jetson Orin Nano and Jetson Orin NX module, provides almost the same peripheral interfaces, size and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects.

Compatible with Orin Module

Supports connecting to N-VIDIA Jetson Orin Nano moduleandJetson Orin NX module

connect to CSI camera

1× 4-Lane/2-Lane + 1× 2-Lane CSI camera ports for AI applications such as face recognition, road sign recognition and license plate recognition

* Note: the adapter cable is required for connecting the camera.

5× USB ports

4× Tyep-A + 1× Tyep-C

Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, and the Type-C port can be used for system burning

4K High Definition output

Supports DP High-definition Port

color-coded 40PIN GPIO header

color-coded header pins to differentiate IO resources such as I2C, SPI, I2S, UART, GPIO, etc.

Flexible storage and wireless expansion

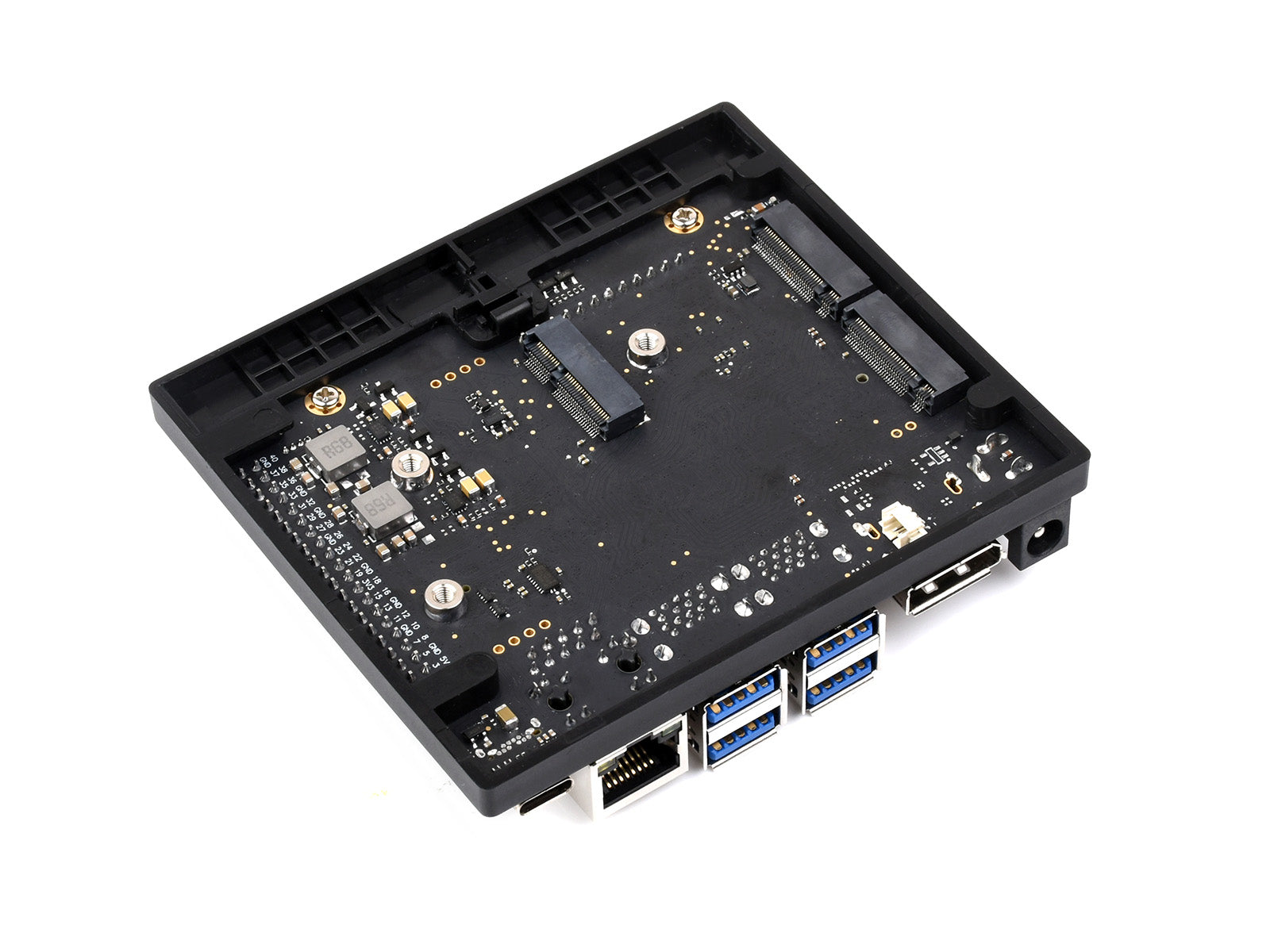

Onboard 2× M.2 Key M ports for easy connecting Solid State Drives and 1× M.2 Key E interface for connecting wireless NIC, which can reduce cable connection

* for reference only, the Solid State Drive and wireless network card are NOT included.

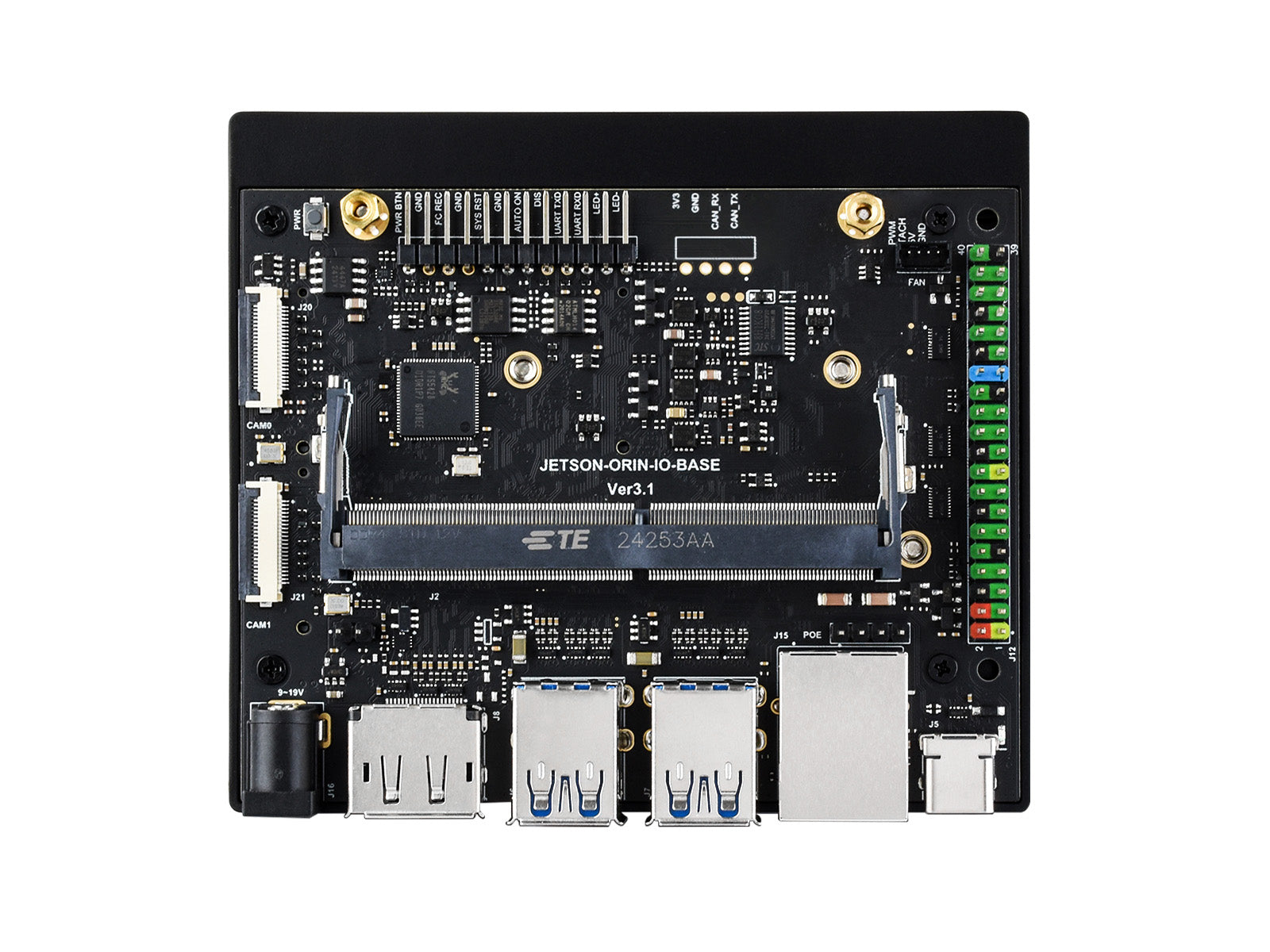

Onboard resource

260PIN DO-DIMM socket for connecting Jetson Orin Nano/NX module
12PIN header Adapting pins for power supply, reset button, force recovery setting, serial port debug, auto power-up enable and power indicator functions
Power button
2× 22PIN CSI camera connectors2× MIPI CSI 4-lane camera connectors
DC Power jack Supports wide range 9V~19V power supply, compatible with 5.5 × 2.5mm male plug
DisplayPort connector Supports 4K display
4× USB 3.2 Gen2 Type A ports Supports up to 10Gbps data transmission
