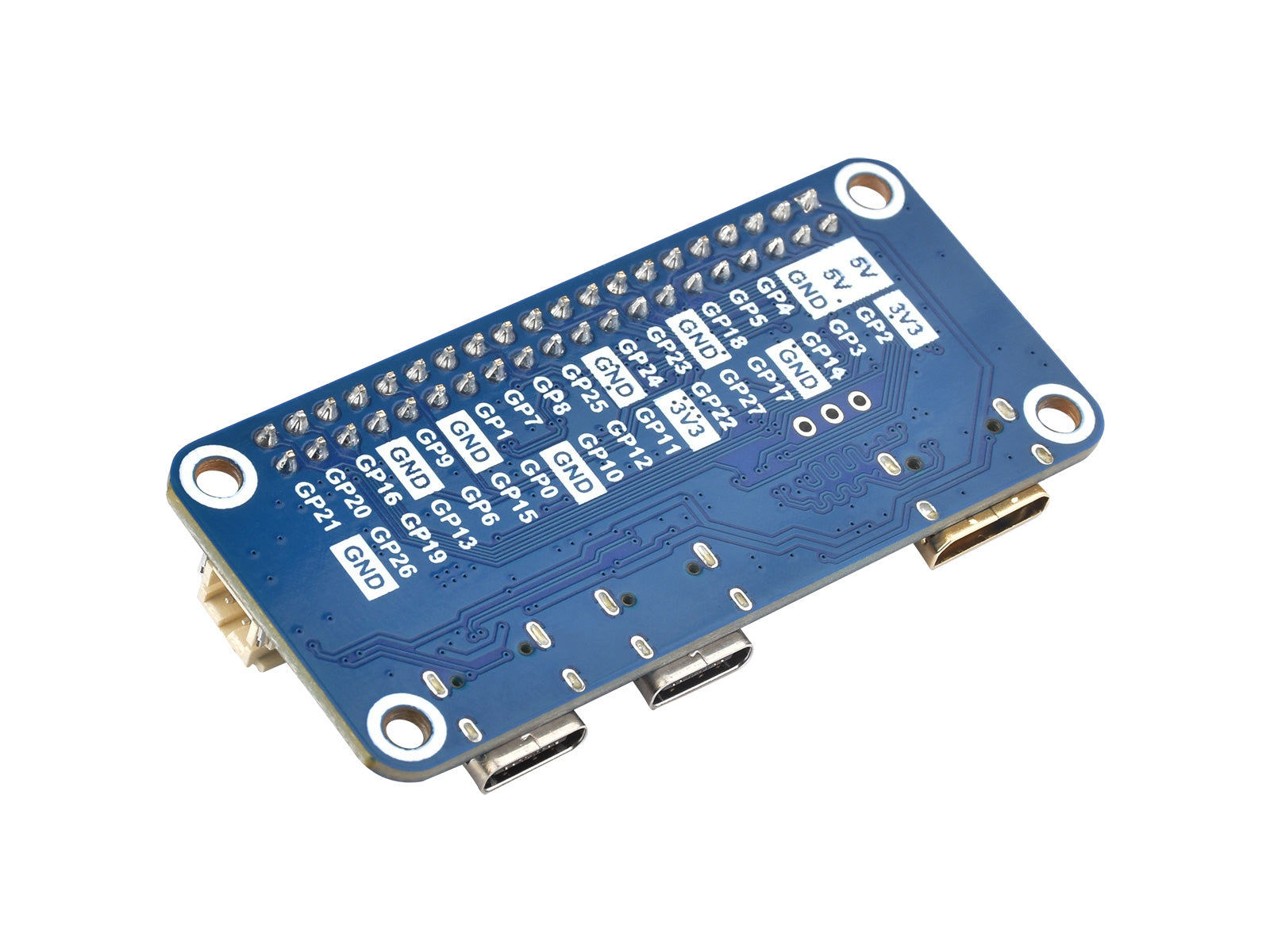

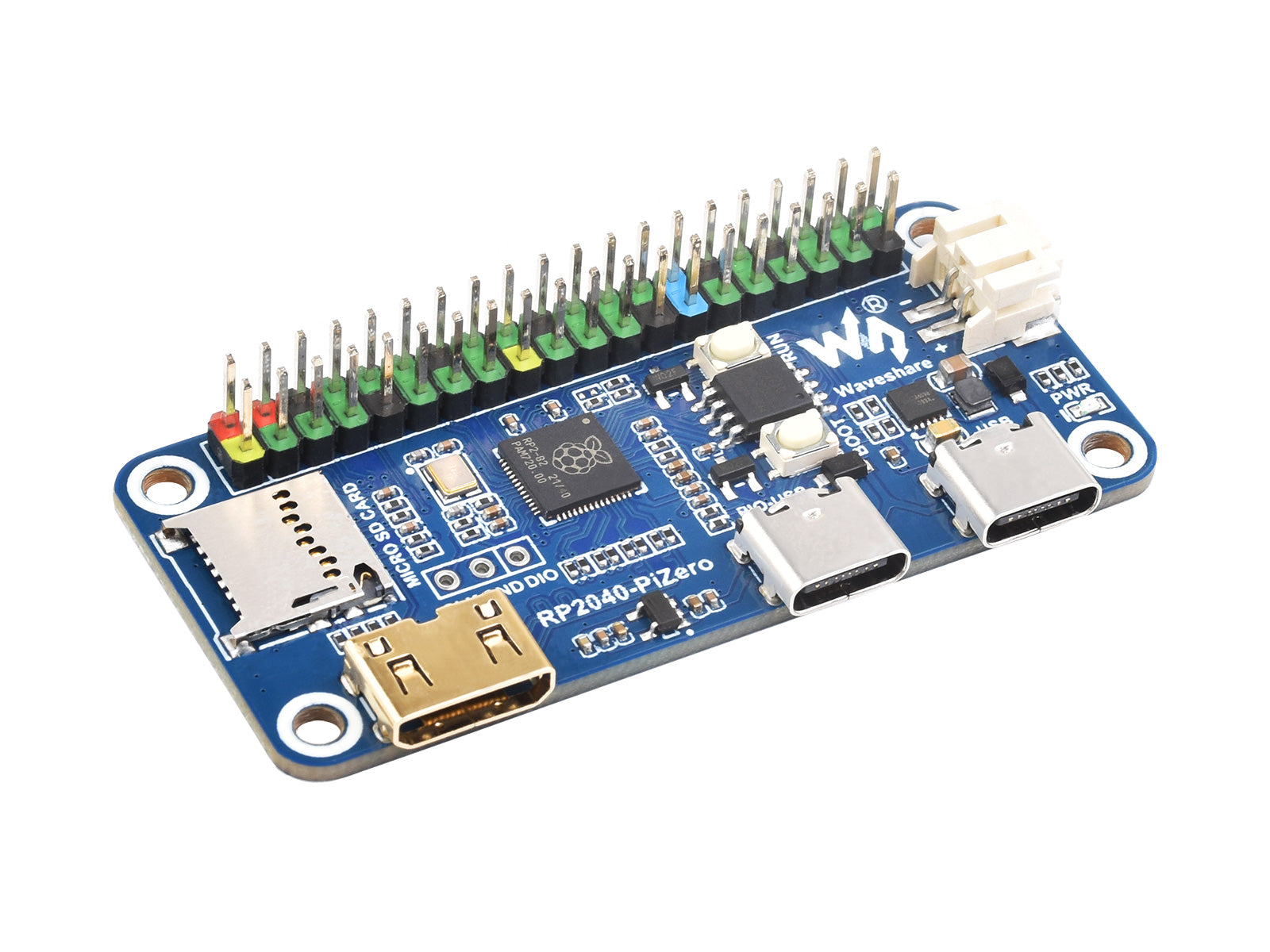

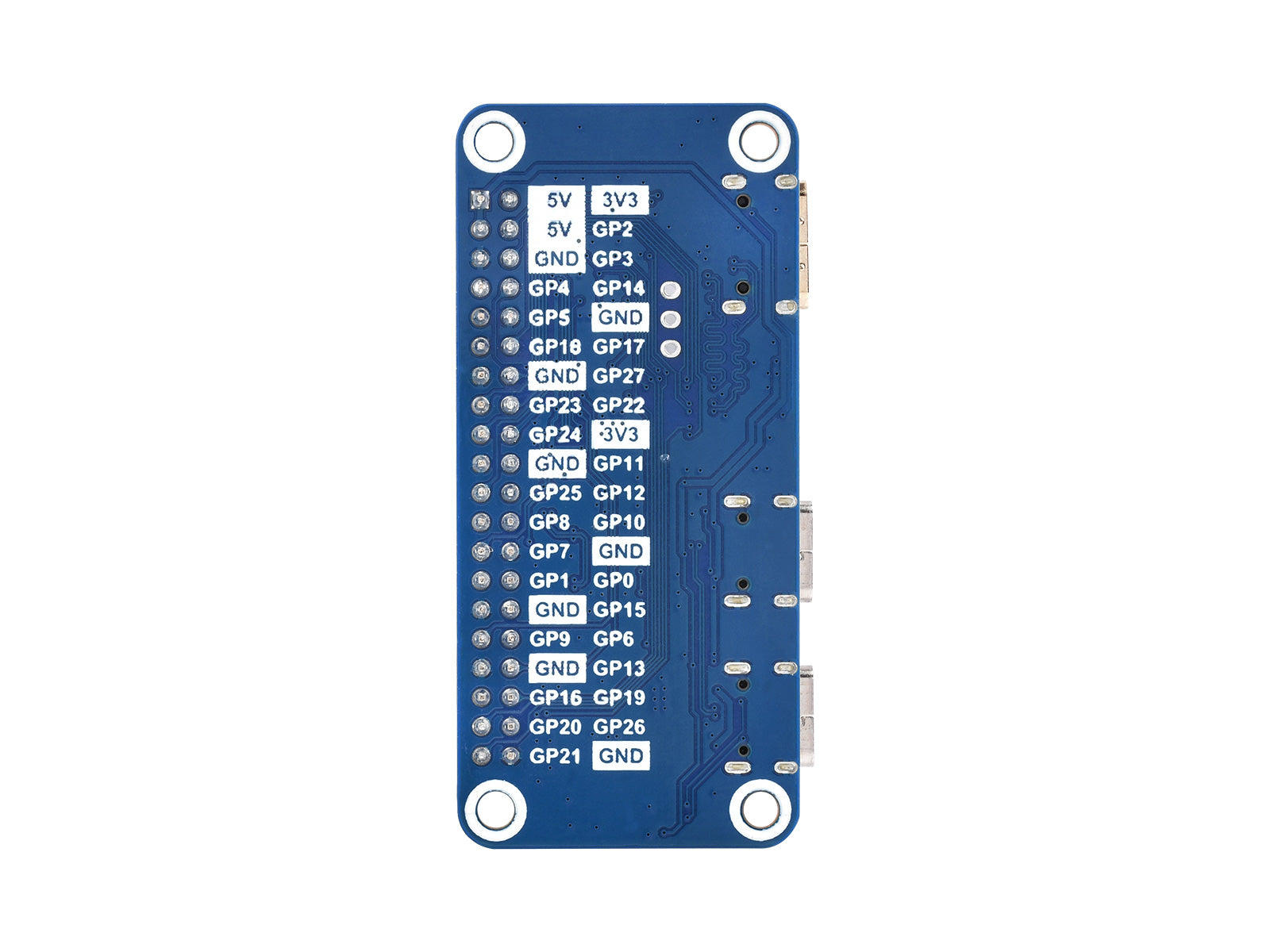

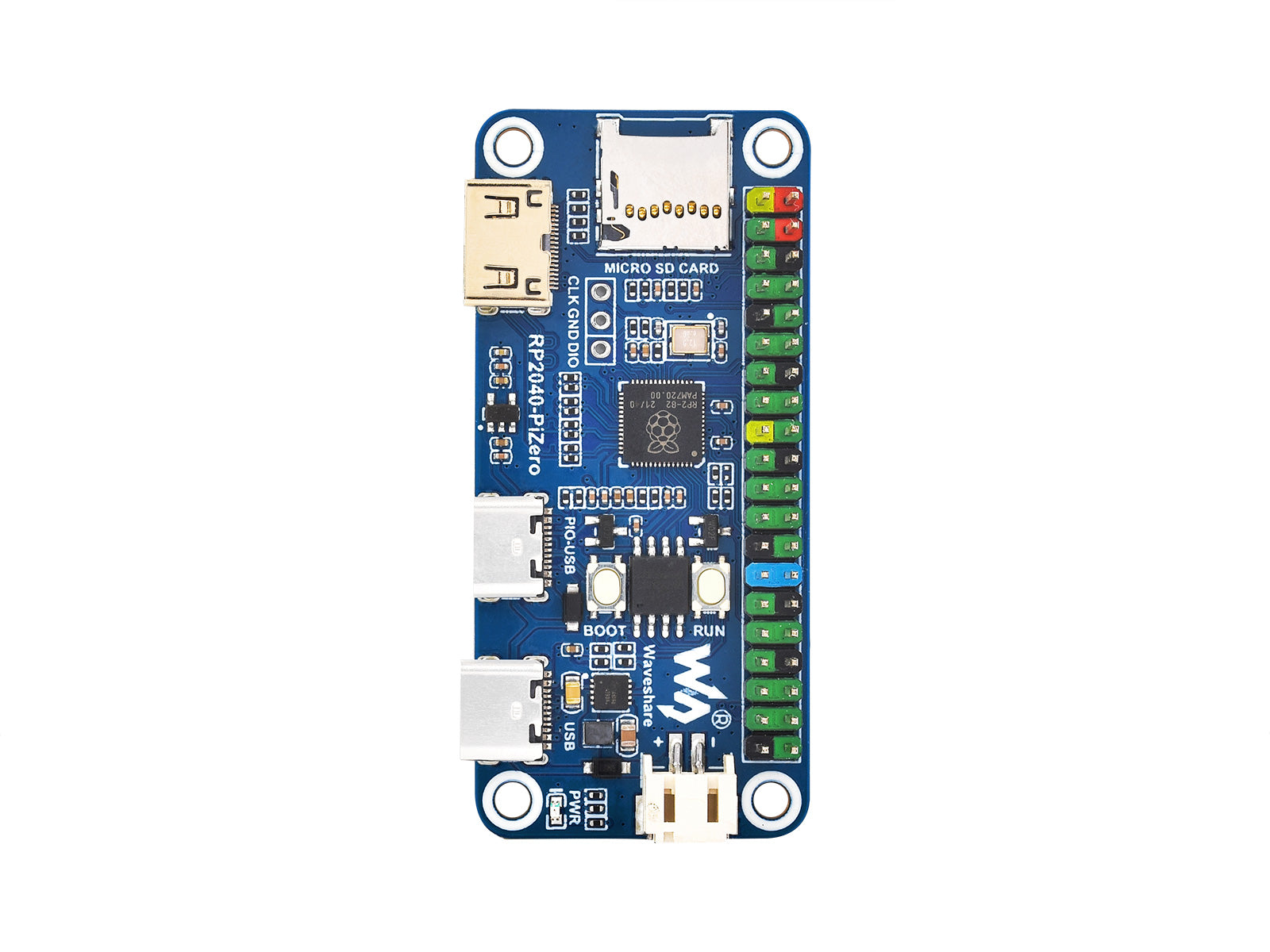

Waveshare RP2040-PiZero Development Board, Based On The Raspberry Pi RP2040 Dual-core Processor, 264KB SRAM And 16MB Onboard Flash Memory

RP2040-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, easy to develop and integrate into the products.

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 16MB of onboard Flash memory
• Onboard DVI interface can drive most HDMI screens (DVI compatibility required)
• Supports using as a USB host or slave via onboard PIO-USB port
• Onboard TF card slot for reading and writing TF card
• Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios
• USB 1.1 with device and host support
• Drag-and-drop programming using mass storage over USB
• Low-power sleep and dormant modes
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
