SKU:WSAL29394

Waveshare RP2350-Tiny Development Board, Raspberry Pi Microcontroller Development Board, Based On RP2350A Dual-core & Dual-architecture Microcontroller, Optional for USB Port Adapter Board

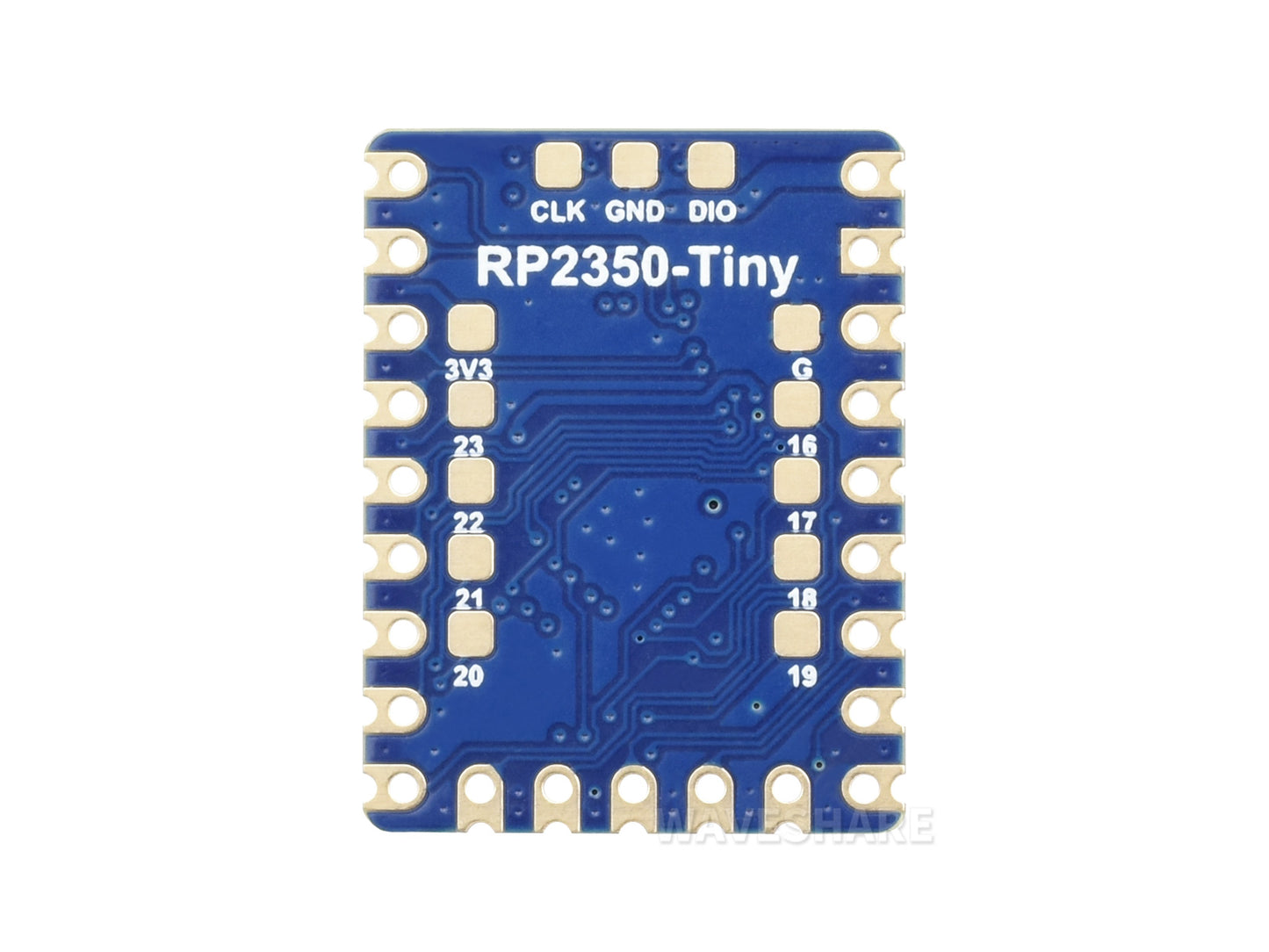

RP2350-Tiny Development Board

Based On RP2350A, Optional for USB Port Adapter Board

Castellated Module, Suitable For SMD Applications

Board specifications

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 4MB of on-board Flash memory
• Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
• Castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 28 × multi-function GPIO pins (20× via edge pinout, others via solder points)
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

Version Options

RP2350-Tiny The development board only

RP2350-Tiny-KitDevelopment board + USB port adapter + FPC cable

Support C/C++, MicroPython

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

dual-core, dual-architecture

Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz

28 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

* Reserved two 0402 resistor pads for user mode selection, you need solder the corresponding resistors or short the pads and complete the corresponding programming.

What's On Board

1. FPC connector 0.5mm pitch 8PIN
2. ME6217C33M5G Low dropout regulator, 800mA output (Max.)
3. P25Q32SH-UXH-IR 4MB NOR-Flash

4. RP2350A Dual-core and dual-architecture design, up to 150 MHz operating frequency
5. WS2812 RGB LED Indicator

Product Show

outline dimensions

RP2350-Tiny

USB Port Adapter

Resources & Services

Wiki:www.waveshare.com/wiki/RP2350-Tiny

Pico Product Selection

PRODUCT	Voltage regulator chip	USB	Flash	Lithium battery header	Onboard LCD
RP2350 chip
Raspberry Pi Pico 2	DC-DC, 800mA	Micro USB	4MB	-	-
Raspberry Pi Pico 2 W	DC-DC, 800mA	Micro USB	4MB	-	with WIFI and Bluetooth
Raspberry Pi Pico 2 WH	DC-DC, 800mA	Micro USB	4MB	-	with WIFI and Bluetooth
CAN ver.	DC-DC, 2000mA	Type-C	4MB	-	CAN interface
Type-A ver.	LDO, 500mA	Type-A	4MB	-	-
Type-C ver.	LDO, 800mA	Type-C	4MB	-	-
Tiny ver.	LDO, 800mA	Separate Type-C port adapter	4MB	-	Separate adapter board design, adapting USB Type-C port via FPC
RGB Matrix ver.	LDO, 800mA	Type-C	16MB	-	Onboard 8 x 8 RGB LED Matrix
ETH Port ver.	LDO, 800mA	Type-C	4MB	-	with Ethernet port
USB ver.	LDO, 500mA	Type-A, Type-C	2MB	-	with PIO-USB Type-A and USB Type-C port
core board	LDO, 800mA	Separate Type-C port adapter	16MB	-	-
wireless Plus ver.	LDO, 800mA	Type-C	16MB	-	Supports Wi-Fi and Bluetooth
1.28inch Round LCD ver.	LDO, 300mA	Type-C	4MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch IPS LCD
1.28inch Round Touch LCD ver.	LDO, 300mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch IPS touch LCD
1.43inch Round Touch AMOLED ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.43inch AMOLED Touch LCD
1.64inch Touch AMOLED ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.64inch AMOLED Touch LCD
1.75inch Round Touch AMOLED ver.	DC-DC, 2000mA LDO,300mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.75inch AMOLED Touch LCD
1.8inch Touch AMOLED ver.	DC-DC, 2000mA LDO，300mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.8inch AMOLED Touch LCD
1.46inch Round Touch ver.	DC-DC, 2000mA	Type-C	16MB	-	1.46inch touch LCD
1.47inch LCD ver.	LDO, 300mA	Type-C	16MB	-	1.47inch IPS LCD
1.47inch LCD USB ver.	LDO, 300mA	Type-A	16MB	-	1.47inch IPS LCD
1.54inch LCD ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.54inch IPS LCD
1.54inch Touch LCD ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.54inch IPS Touch LCD
1.69inch Touch LCD ver.	LDO, 500mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.69inch Touch LCD
2inch Touch LCD ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2inch Touch LCD
2.1inch Round Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2.1inch Touch LCD
2.1inch Round Curved Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2.1inch 2.5D Curved Touch LCD
2.41inch Touch AMOLED ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2.41inch Touch AMOLED
2.8inch Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2.8inch IPS Touch LCD
2.8inch Round Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2.8inch IPS Touch LCD, RGB interface
3.49inch Touch LCD ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	3.49inch IPS Touch LCD
3.5inch Touch LCD ver.	DC-DC, 2000mALDO, 300mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	3.5inch Touch LCD
4inch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	4inch IPS LCD, RGB interface
4inch Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	4inch IPS Touch LCD, RGB interface
4.3inch Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	4.3inch IPS Touch LCD, RGB interface
7inch Touch LCD ver.	DC-DC, 3000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	7inch IPS Touch LCD, RGB interface
7inch LCD ver.	DC-DC, 3000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	7inch IPS LCD, RGB interface
0.96 LCD ver.	DC-DC, 2000mA	Type-C	4MB	Support(allows recharging the battery and powering the board at the same time)	0.96inch IPS LCD
Plus ver.	DC-DC, 2000mA	Type-C	4MB/16MB	Support(allows recharging the battery and powering the board at the same time)	-
DVI port ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	Onboard DVI interface, TF card slot and PIO-USB port
RP2040 chip
Raspberry Pi Pico W	DC-DC, 3000mA	Micro USB	2MB	-	with WIFI
Raspberry Pi Pico WH	DC-DC, 3000mA	Micro USB	2MB	-	with WIFI
Raspberry Pi Pico	DC-DC, 800mA	Micro USB	2MB	-	-
Raspberry Pi Pico H	DC-DC, 800mA	Micro USB	2MB	-	-
Type-A ver.	LDO, 500mA	Type-A	4MB	-	-
Mini ver.	LDO, 800mA	Type-C	2MB	-	-
Tiny ver.	LDO, 500mA	Separate Type-C port adapter	2MB	-	Separate adapter board design, adapting USB Type-C port via FPC
RGB Matrix ver.	LDO, 500mA	Type-C	2MB	-	Onboard 5×5 RGB LED matrix
BLE ver.	LDO, 300mA	Separate Type-C port adapter	2MB	-	Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC
ETH Port ver.	LDO, 500mA	Type-C	4MB	-	with Ethernet port
0.99inch Round LCD with case ver.	LDO, 500mA	Type-C	2MB	-	0.99inch IPS LCD, CNC metal case
1.28inch Round LCD ver.	LDO, 300mA	Type-C	2MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch IPS LCD
1.28inch Round LCD with case ver.	LDO, 300mA	Type-C	2MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch IPS LCD, CNC metal case
1.28inch Round Touch LCD ver.	LDO, 500mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch Touch LCD
1.28inch Round Touch LCD with case ver.	LDO, 500mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch Touch LCD, CNC metal case
1.69inch Touch LCD ver.	LDO, 500mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.69inch Touch LCD
1.85inch Touch LCD ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.85inch Touch LCD
0.96 LCD ver.	DC-DC, 1800mA	Type-C	2MB	Support(allows recharging the battery and powering the board at the same time)	0.96inch IPS LCD
Plus ver.	DC-DC, 1800mA	Type-C	4MB/16MB	Support(allows recharging the battery and powering the board at the same time)	-
DVI port ver.	LDO, 300mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	Onboard DVI interface, TF card slot and PIO-USB port
Cam & LCD ver.	-	Type-C	16MB	-	Onboard grayscale camera and 1.14inch IPS LCD display

Lieferumfang

RP2350-Tiny

1. RP2350-Tiny x1

1

RP2350-Tiny-Kit

1. RP2350-Tiny x1
2. USB port adapter x1
3. 8PIN FPC cable ~15cm x1

1

2

3
