Waveshare RP2350A USB Mini Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller, 150MHz Operating Frequency

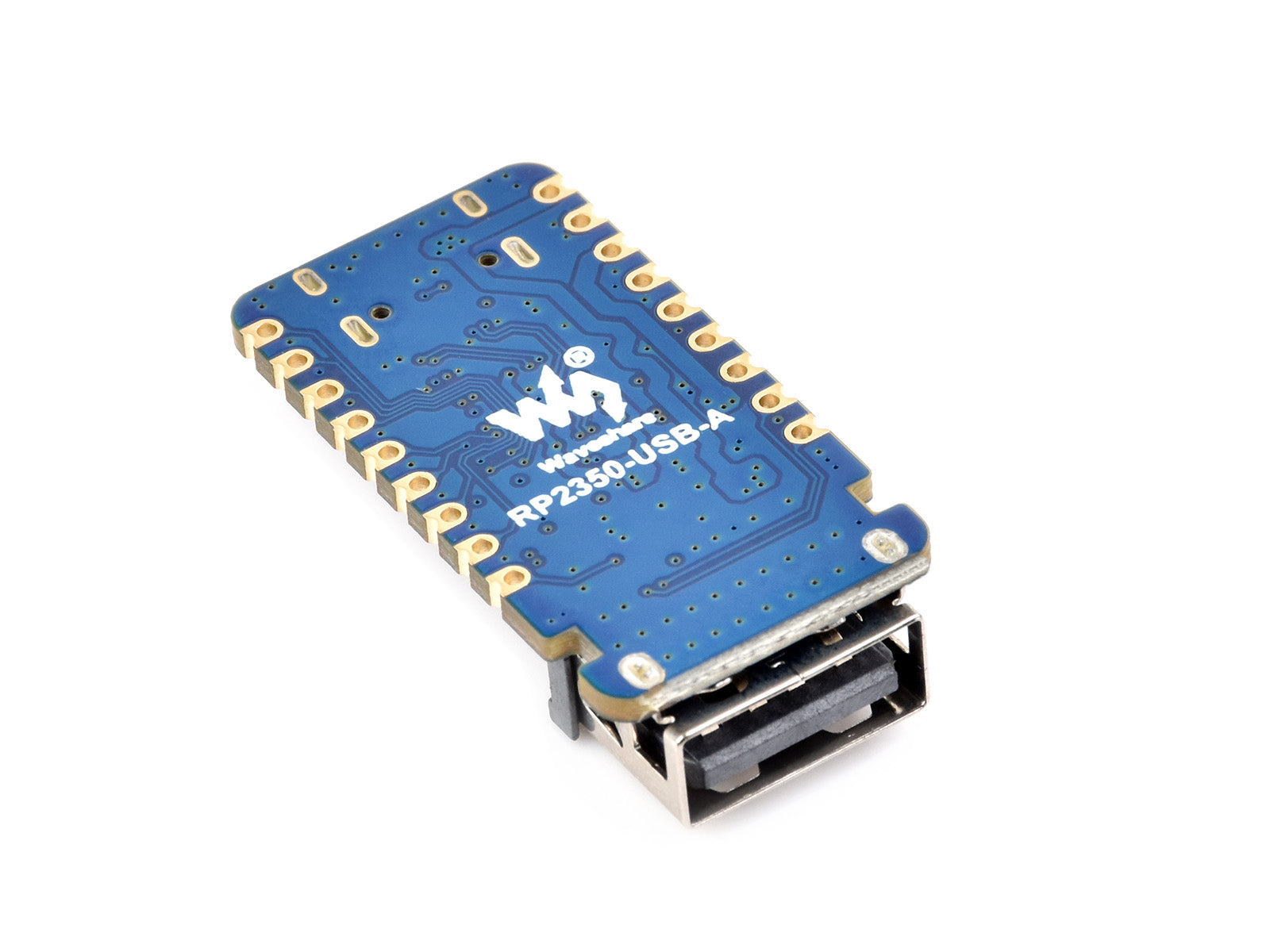

RP2350-USB-A Mini Development Board

Based On Raspberry Pi RP2350A, Onboard USB Ports

Castellated module, suitable for SMD applications

Board specifications

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 2MB of onboard Flash memory
• Type-C connector, keeps it up to date, easier to use
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0/1.1 transmission
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Adapting 15 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 14 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

Supports C/C++, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

dual-core, dual-architecture

Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz

15 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

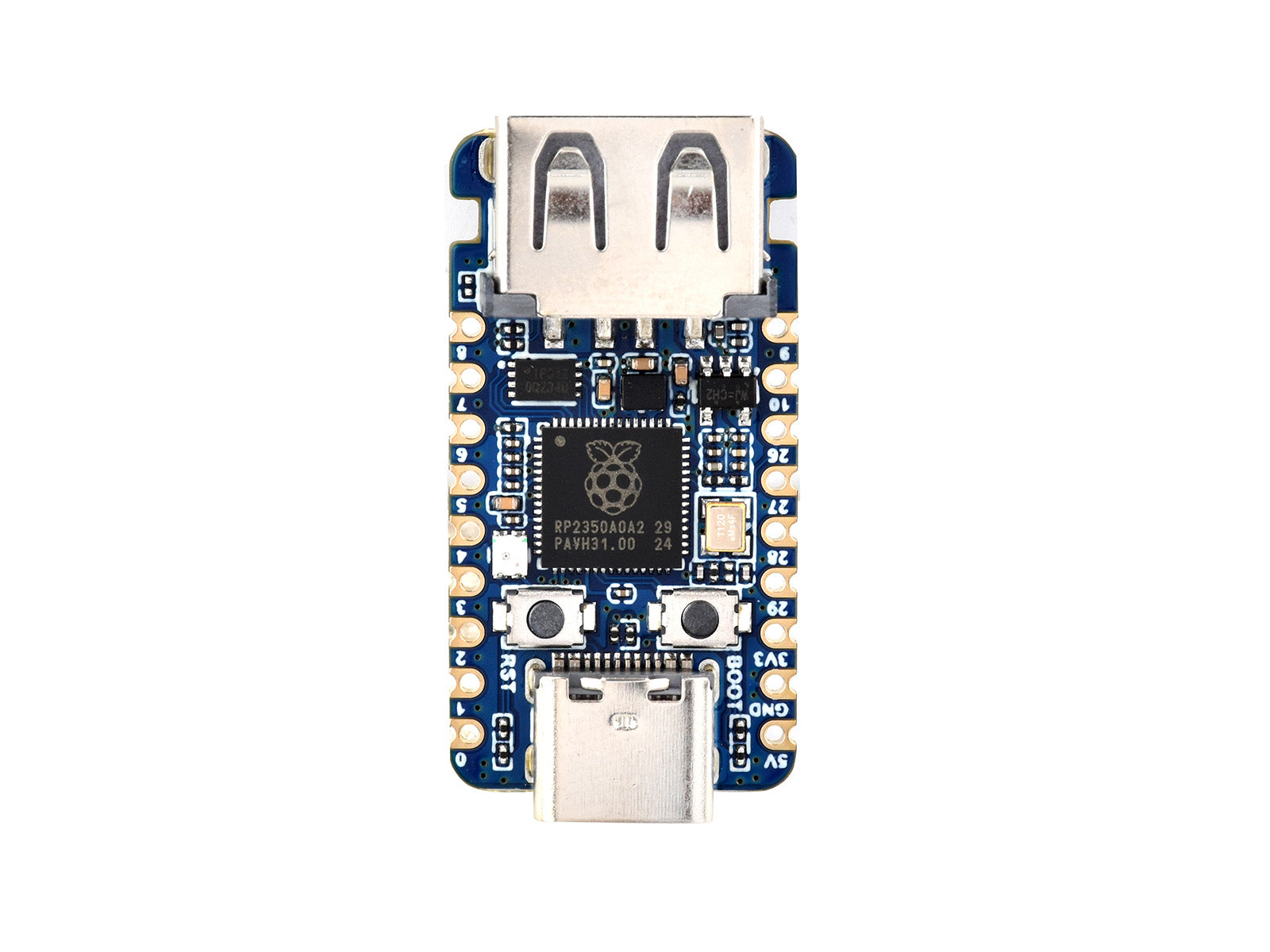

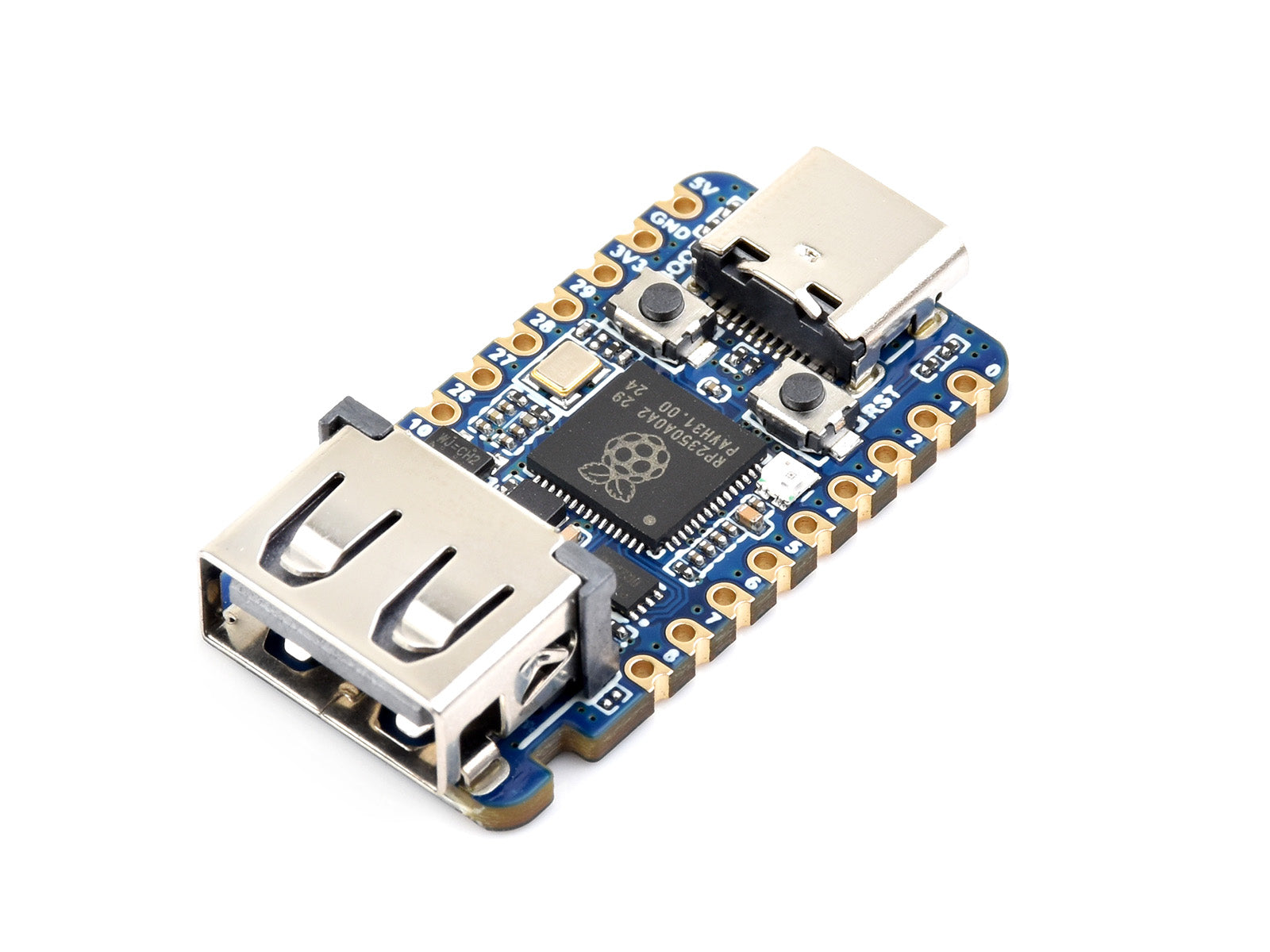

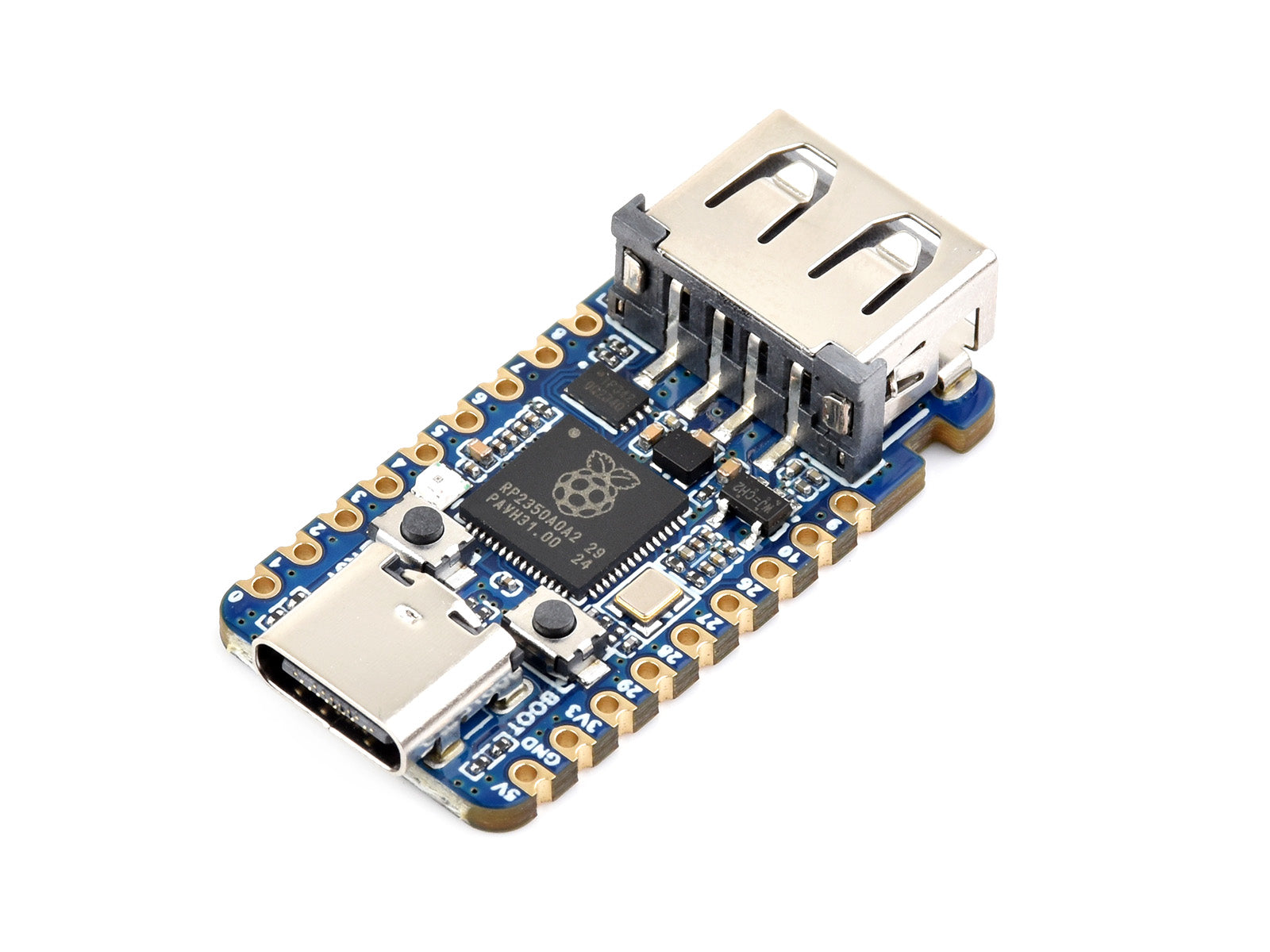

What's On Board

1. USB 2.0 Type A connectorSupports USB host or device via PIO
2. BOOT buttonPress it when resetting to enter download mode
3. RESET button
4. RP2350A Dual-core and dual-architecture design, up to 150 MHz operating frequency

5. WS2812 cool RGB LED
6. RT9013-33GB500mA LDO regulator, low noise, ultra-fast response
7. W25Q16JVUXIQ 2MB NOR-Flash
8. USB Type-C connector for programming, USB 1.1 with device and host support

outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/RP2350-USB-A

Pico Product Selection

PRODUCT	Voltage regulator chip	USB	Flash	Lithium battery header	Onboard LCD
RP2350 chip
Raspberry Pi Pico 2	DC-DC, 800mA	Micro USB	4MB	-	-
Raspberry Pi Pico 2 W	DC-DC, 800mA	Micro USB	4MB	-	with WIFI and Bluetooth
Raspberry Pi Pico 2 WH	DC-DC, 800mA	Micro USB	4MB	-	with WIFI and Bluetooth
CAN ver.	DC-DC, 2000mA	Type-C	4MB	-	CAN interface
Type-A ver.	LDO, 500mA	Type-A	4MB	-	-
Type-C ver.	LDO, 800mA	Type-C	4MB	-	-
Tiny ver.	LDO, 800mA	Separate Type-C port adapter	4MB	-	Separate adapter board design, adapting USB Type-C port via FPC
RGB Matrix ver.	LDO, 800mA	Type-C	16MB	-	Onboard 8 x 8 RGB LED Matrix
ETH Port ver.	LDO, 800mA	Type-C	4MB	-	with Ethernet port
USB ver.	LDO, 500mA	Type-A, Type-C	2MB	-	with PIO-USB Type-A and USB Type-C port
core board	LDO, 800mA	Separate Type-C port adapter	16MB	-	-
wireless Plus ver.	LDO, 800mA	Type-C	16MB	-	Supports Wi-Fi and Bluetooth
1.28inch Round LCD ver.	LDO, 300mA	Type-C	4MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch IPS LCD
1.28inch Round Touch LCD ver.	LDO, 300mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch IPS touch LCD
1.43inch Round Touch AMOLED ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.43inch AMOLED Touch LCD
1.64inch Touch AMOLED ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.64inch AMOLED Touch LCD
1.75inch Round Touch AMOLED ver.	DC-DC, 2000mA LDO,300mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.75inch AMOLED Touch LCD
1.8inch Touch AMOLED ver.	DC-DC, 2000mA LDO，300mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.8inch AMOLED Touch LCD
1.46inch Round Touch ver.	DC-DC, 2000mA	Type-C	16MB	-	1.46inch touch LCD
1.47inch LCD ver.	LDO, 300mA	Type-C	16MB	-	1.47inch IPS LCD
1.47inch LCD USB ver.	LDO, 300mA	Type-A	16MB	-	1.47inch IPS LCD
1.54inch LCD ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.54inch IPS LCD
1.54inch Touch LCD ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.54inch IPS Touch LCD
1.69inch Touch LCD ver.	LDO, 500mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.69inch Touch LCD
2inch Touch LCD ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2inch Touch LCD
2.1inch Round Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2.1inch Touch LCD
2.1inch Round Curved Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2.1inch 2.5D Curved Touch LCD
2.41inch Touch AMOLED ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2.41inch Touch AMOLED
2.8inch Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2.8inch IPS Touch LCD
2.8inch Round Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	2.8inch IPS Touch LCD, RGB interface
3.49inch Touch LCD ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	3.49inch IPS Touch LCD
3.5inch Touch LCD ver.	DC-DC, 2000mALDO, 300mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	3.5inch Touch LCD
4inch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	4inch IPS LCD, RGB interface
4inch Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	4inch IPS Touch LCD, RGB interface
4.3inch Touch LCD ver.	LDO, 800mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	4.3inch IPS Touch LCD, RGB interface
7inch Touch LCD ver.	DC-DC, 3000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	7inch IPS Touch LCD, RGB interface
7inch LCD ver.	DC-DC, 3000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	7inch IPS LCD, RGB interface
0.96 LCD ver.	DC-DC, 2000mA	Type-C	4MB	Support(allows recharging the battery and powering the board at the same time)	0.96inch IPS LCD
Plus ver.	DC-DC, 2000mA	Type-C	4MB/16MB	Support(allows recharging the battery and powering the board at the same time)	-
DVI port ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	Onboard DVI interface, TF card slot and PIO-USB port
RP2040 chip
Raspberry Pi Pico W	DC-DC, 3000mA	Micro USB	2MB	-	with WIFI
Raspberry Pi Pico WH	DC-DC, 3000mA	Micro USB	2MB	-	with WIFI
Raspberry Pi Pico	DC-DC, 800mA	Micro USB	2MB	-	-
Raspberry Pi Pico H	DC-DC, 800mA	Micro USB	2MB	-	-
Type-A ver.	LDO, 500mA	Type-A	4MB	-	-
Mini ver.	LDO, 800mA	Type-C	2MB	-	-
Tiny ver.	LDO, 500mA	Separate Type-C port adapter	2MB	-	Separate adapter board design, adapting USB Type-C port via FPC
RGB Matrix ver.	LDO, 500mA	Type-C	2MB	-	Onboard 5×5 RGB LED matrix
BLE ver.	LDO, 300mA	Separate Type-C port adapter	2MB	-	Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC
ETH Port ver.	LDO, 500mA	Type-C	4MB	-	with Ethernet port
0.99inch Round LCD with case ver.	LDO, 500mA	Type-C	2MB	-	0.99inch IPS LCD, CNC metal case
1.28inch Round LCD ver.	LDO, 300mA	Type-C	2MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch IPS LCD
1.28inch Round LCD with case ver.	LDO, 300mA	Type-C	2MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch IPS LCD, CNC metal case
1.28inch Round Touch LCD ver.	LDO, 500mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch Touch LCD
1.28inch Round Touch LCD with case ver.	LDO, 500mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.28inch Touch LCD, CNC metal case
1.69inch Touch LCD ver.	LDO, 500mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.69inch Touch LCD
1.85inch Touch LCD ver.	DC-DC, 2000mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	1.85inch Touch LCD
0.96 LCD ver.	DC-DC, 1800mA	Type-C	2MB	Support(allows recharging the battery and powering the board at the same time)	0.96inch IPS LCD
Plus ver.	DC-DC, 1800mA	Type-C	4MB/16MB	Support(allows recharging the battery and powering the board at the same time)	-
DVI port ver.	LDO, 300mA	Type-C	16MB	Support(allows recharging the battery and powering the board at the same time)	Onboard DVI interface, TF card slot and PIO-USB port
Cam & LCD ver.	-	Type-C	16MB	-	Onboard grayscale camera and 1.14inch IPS LCD display
