SKU:WSAL23515

Wireless AX200 NIC, Gigabit Dual-Band Wi-Fi 6, 802.11AX Standard, Bluetooth 5.2

Wi-Fi 6 Wireless AX200 NIC

Dual-Band

Bluetooth 5.2

MU-MIMO

Features at a glance

• Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, lower power consumption and longer service life
• Supports 2.4G/5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz band
• Support Bluetooth 5.2 standard, longer transmission distance and better stability
• Adopts NGFF (M.2 A/E Key) interface
• Adopts the new generation of MU-MIMO wireless technology, provides better network quality, faster Internet speed (more than three times), and higher transmission and download efficiency
• Support Linux, Windows 10/11, etc.

Parameters Comparison

Model	AX210			AX200		BE200
Wi-Fi Version	Wi-Fi 6E			Wi-Fi 6		Wi-Fi 7
Wi-Fi Band	2.4GHz	5GHz	6GHz	2.4GHz	5GHz	2.4GHz	5GHz	6GHz
Wi-Fi Rate	574Mbps	2400Mbps	2400Mbps	574Mbps	2400Mbps	574Mbps	2400Mbps	5800Mbps
Interface	NGFF (M.2 A/E Key)					NGFF (M.2 E Key)
Bluetooth Version	5.3			5.2		5.4
Technical Support	MU-MIMO
Antenna Connector	IPEX-4 Connector
System Support	Linux, Windows 10/11
Dimensions	22.0 × 30.0 × 2.4mm

Compatible With the following Products

DUAL ETH WIFI6

JETSON-IO-BASE-B

MINI BASE A *

MINI BASE B *

MINI BASE C *

TOUCH SCREEN *

BINOCULAR CAMERA *

5″ ALL-IN-ONE *

7″ ALL-IN-ONE *

* indicates that a adapter is required to work with this series of NICs, such as M.2 M KEY TO M.2 A KEY.

AX200 High Performance Wi-Fi 6

Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, lower power consumption and longer service life

Dual-band Wi-Fi

Supports 2.4G/5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz band

Bluetooth 5.2, More Stable Connection

Signal transmission is stable without lag, can be connected to Bluetooth devices such as mobile phones, computers, gamepad, etc. for wireless connection and transmission

Support MU-MIMO Technology

Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster Internet speed (more than three times), and higher transmission and download efficiency

Interface Introduction

Access to antenna via IPEX connector

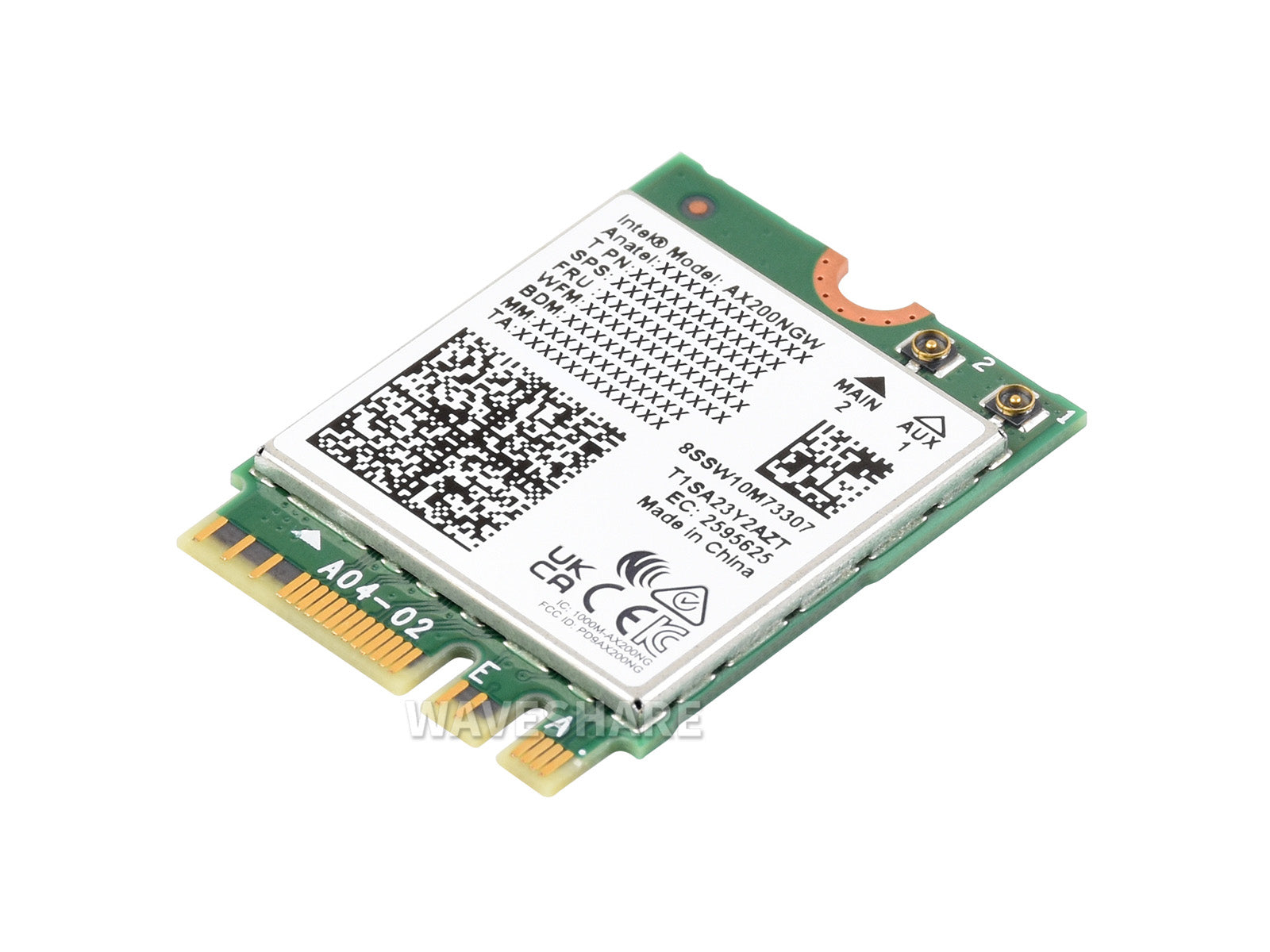

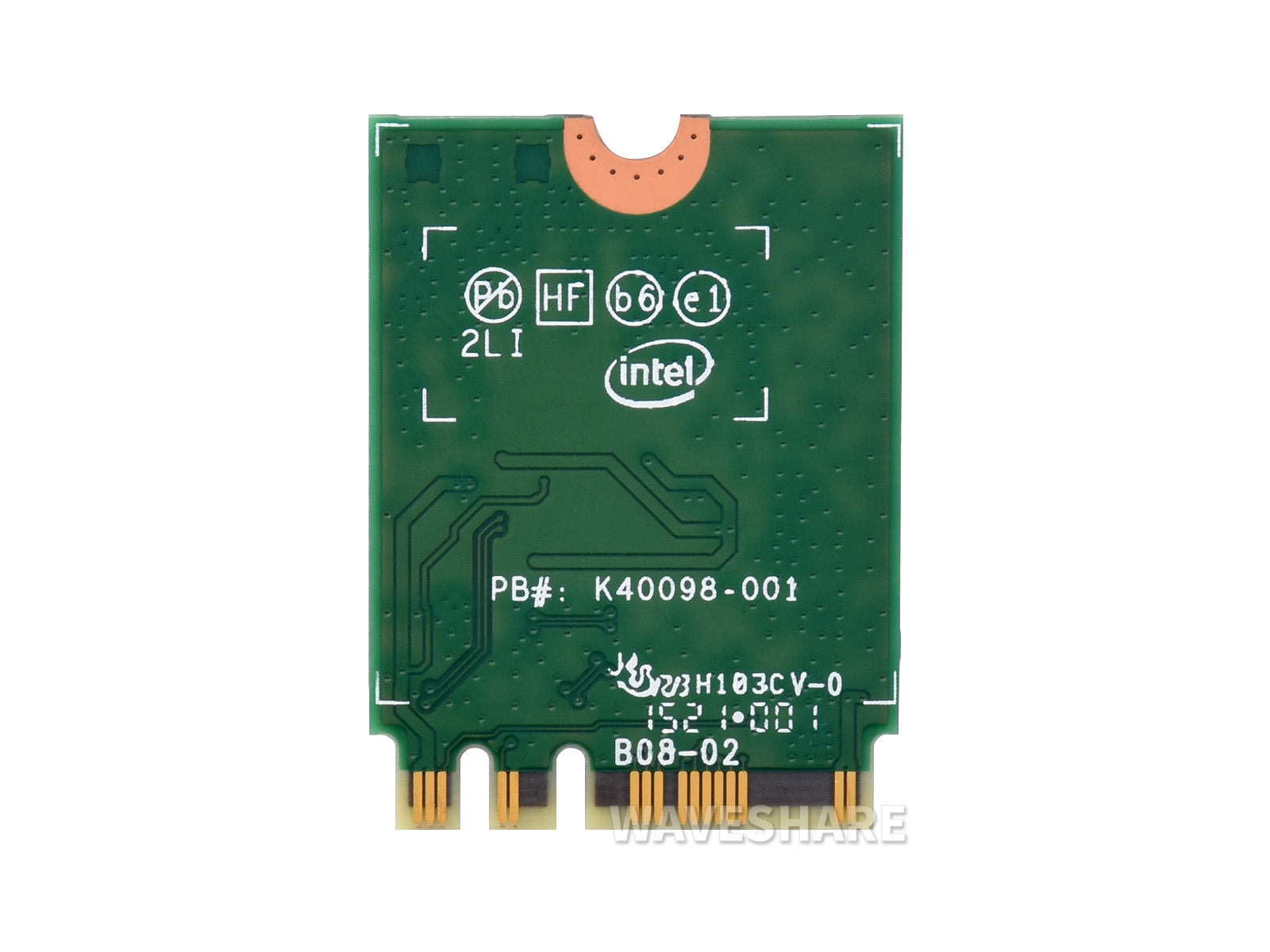

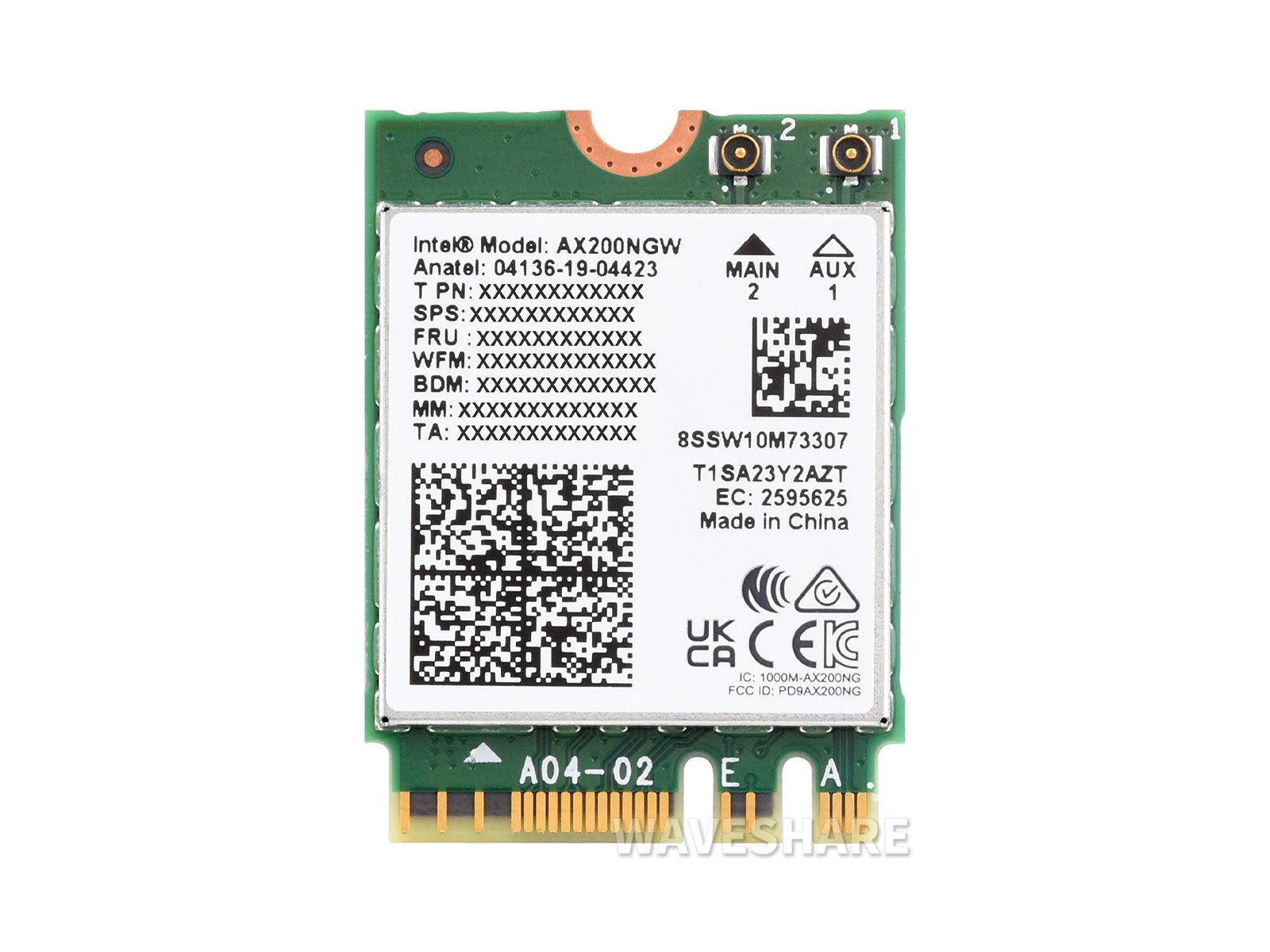

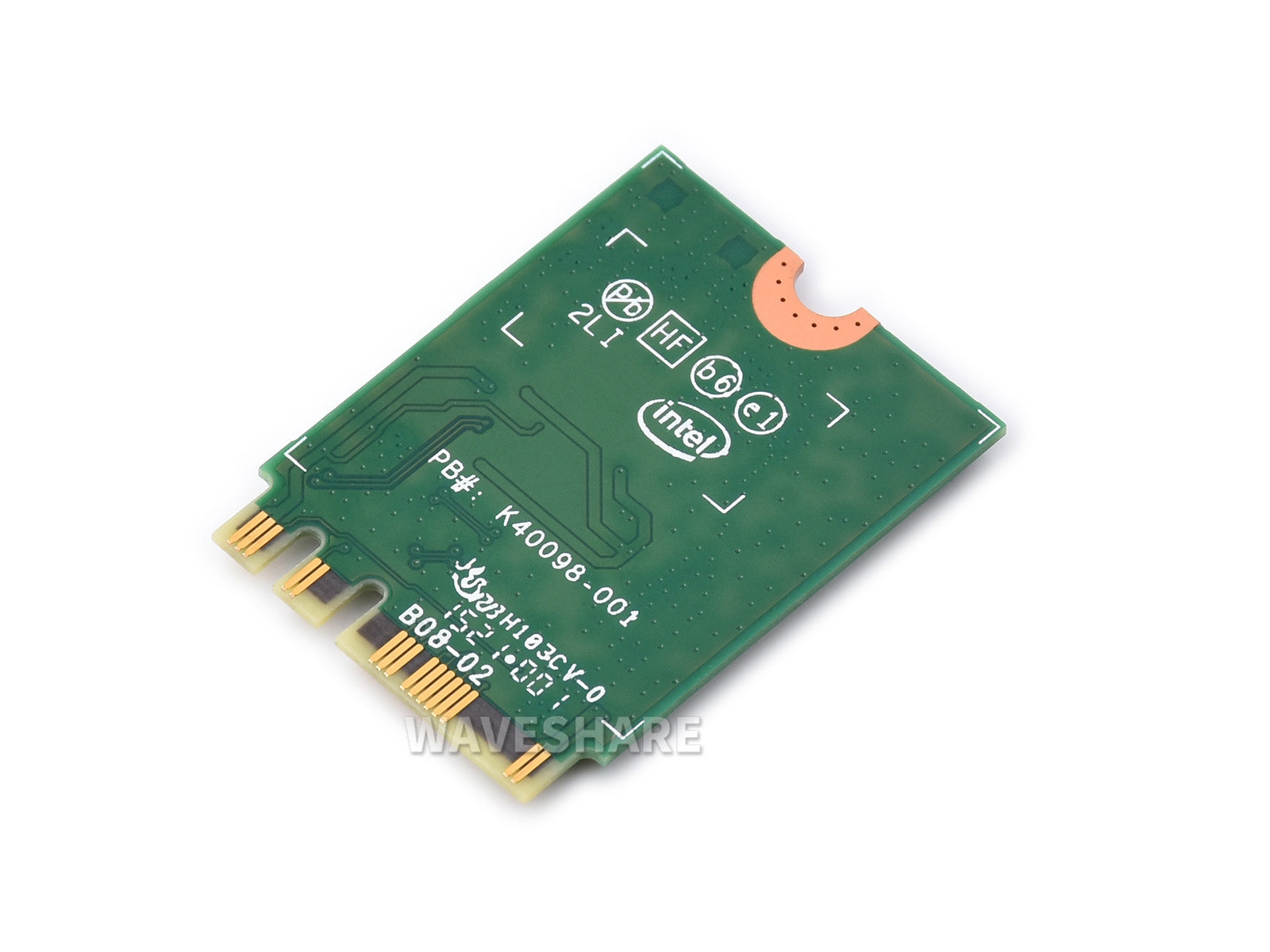

Product Show

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Wireless-AX200

Lieferumfang

1. Wireless-AX200 x1
2. IPEX to SMA cable x2
3. Antenna x2

1

2

3
