SKU:WSAL31593

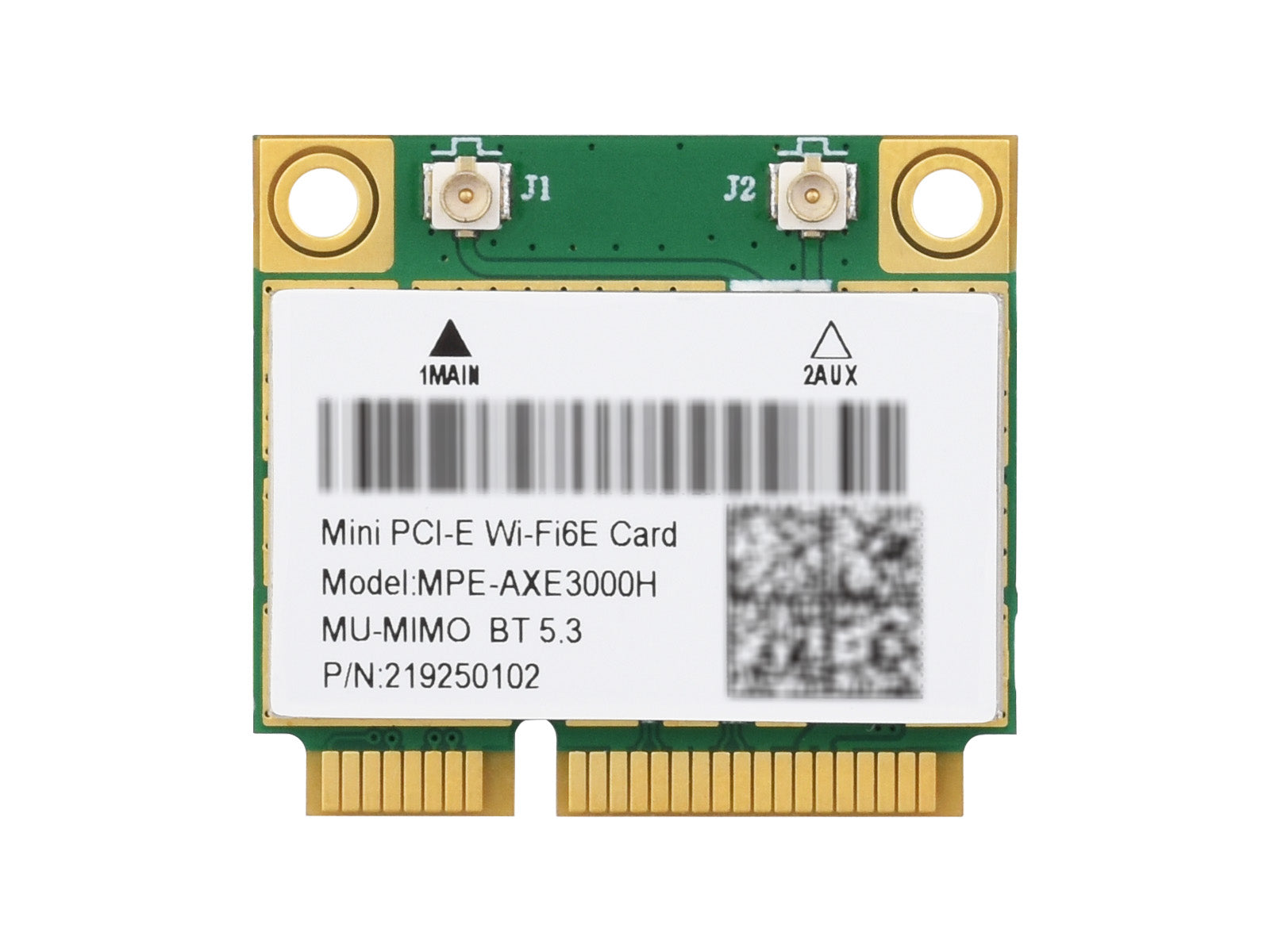

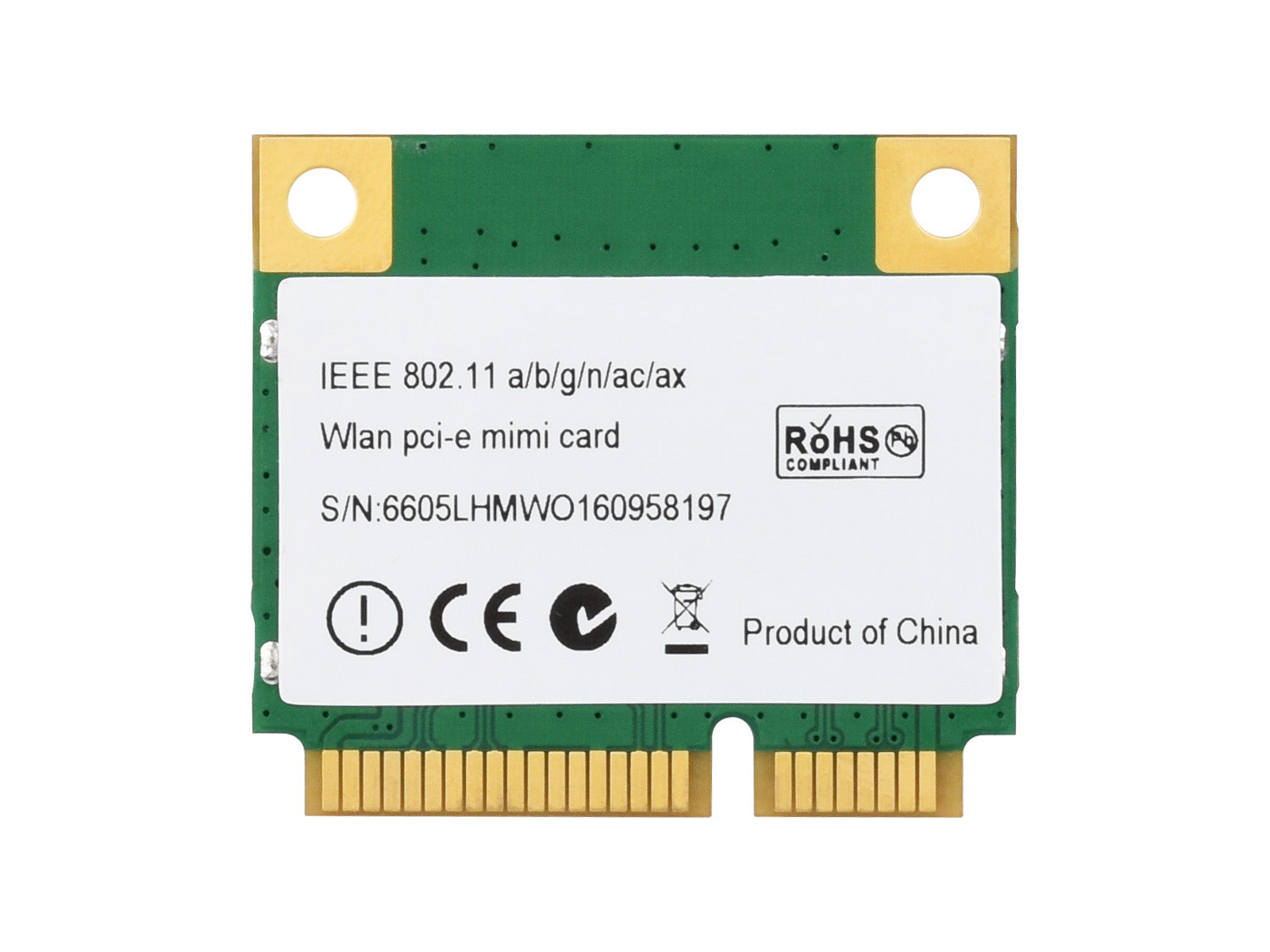

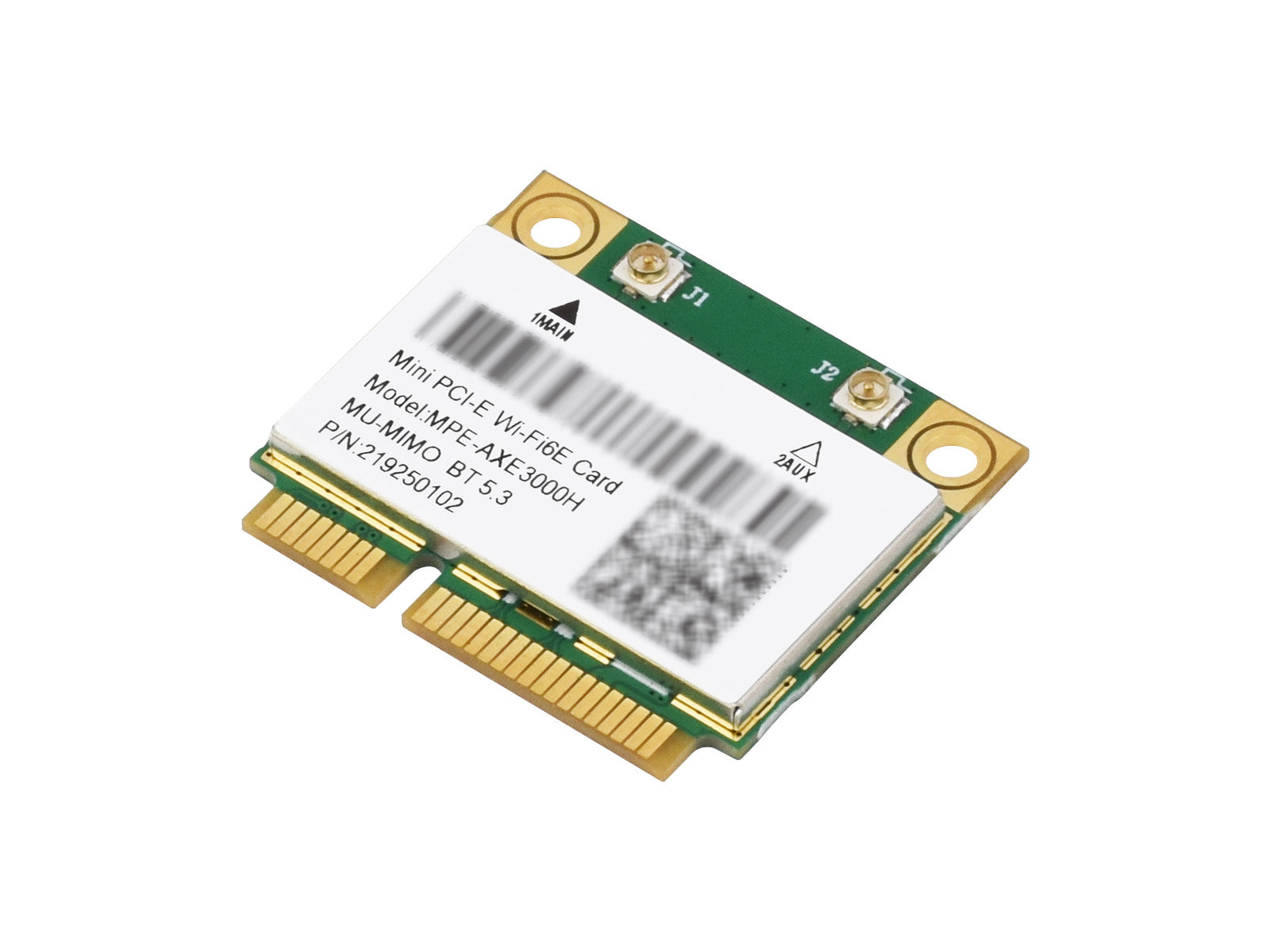

Wireless MINIPCIE AX210 NIC, Gigabit Tri-Band Wi-Fi 6E, 802.11AX Standard, Bluetooth 5.3

Wi-Fi 6 Wireless MiniPCIe AX210 NIC

Tri-Band

Bluetooth 5.3

Wi-Fi 6E

Features at a glance

• Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, with lower power consumption and longer service life
• Supports 2.4G / 5GHz / 6GHz tri-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz / 6GHz band
• Supports Bluetooth 5.3 standard, longer transmission distance and better stability
• Adopts MiniPCIe interface
• Adopts the new generation of MU-MIMO wireless technology, provides better network quality, faster network speed (more than three times), and higher transmission and download efficiency
• Supports Linux, Windows 10/11, etc.

Parameters Comparison

Model	AX210			AX200		RTL8852BE
Wi-Fi Version	Wi-Fi 6E			Wi-Fi 6
Wi-Fi Band	2.4GHz	5GHz	6GHz	2.4GHz	5GHz	2.4GHz	5GHz
Wi-Fi Rate	574Mbps	2400Mbps	2400Mbps	574Mbps	2400Mbps	574Mbps	1200Mbps
Interface	MiniPCIe Interface
Bluetooth Version	5.3			5.2
Technical Support	MU-MIMO
Antenna Connector	IPEX-4 Connector
System Support	Linux, Windows 10/11
Dimensions	29.9 × 26.8 × 3.24 (mm)

AX210 High Performance Wi-Fi 6E

Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, lower power consumption and longer service life

Tri-band Wi-Fi

Supports 2.4GHz / 5GHz / 6GHz tri-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz / 6GHz band

Bluetooth 5.3, More Stable Connection

Signal transmission is stable without lag, can be connected to Bluetooth devices such as mobile phones, computers, gamepads, etc. for wireless connection and transmission

Supports MU-MIMO Technology

Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster network speed (more than three times), and higher transmission and download efficiency

Interface Introduction

Access to antenna via IPEX connector

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Wireless-MINIPCIE-AX210

Lieferumfang

1. Wireless-MINIPCIE-AX210 × 1
2. IPEX 1 to SMA cable × 2
3. 6DB antenna × 2
4. Screwdriver × 1

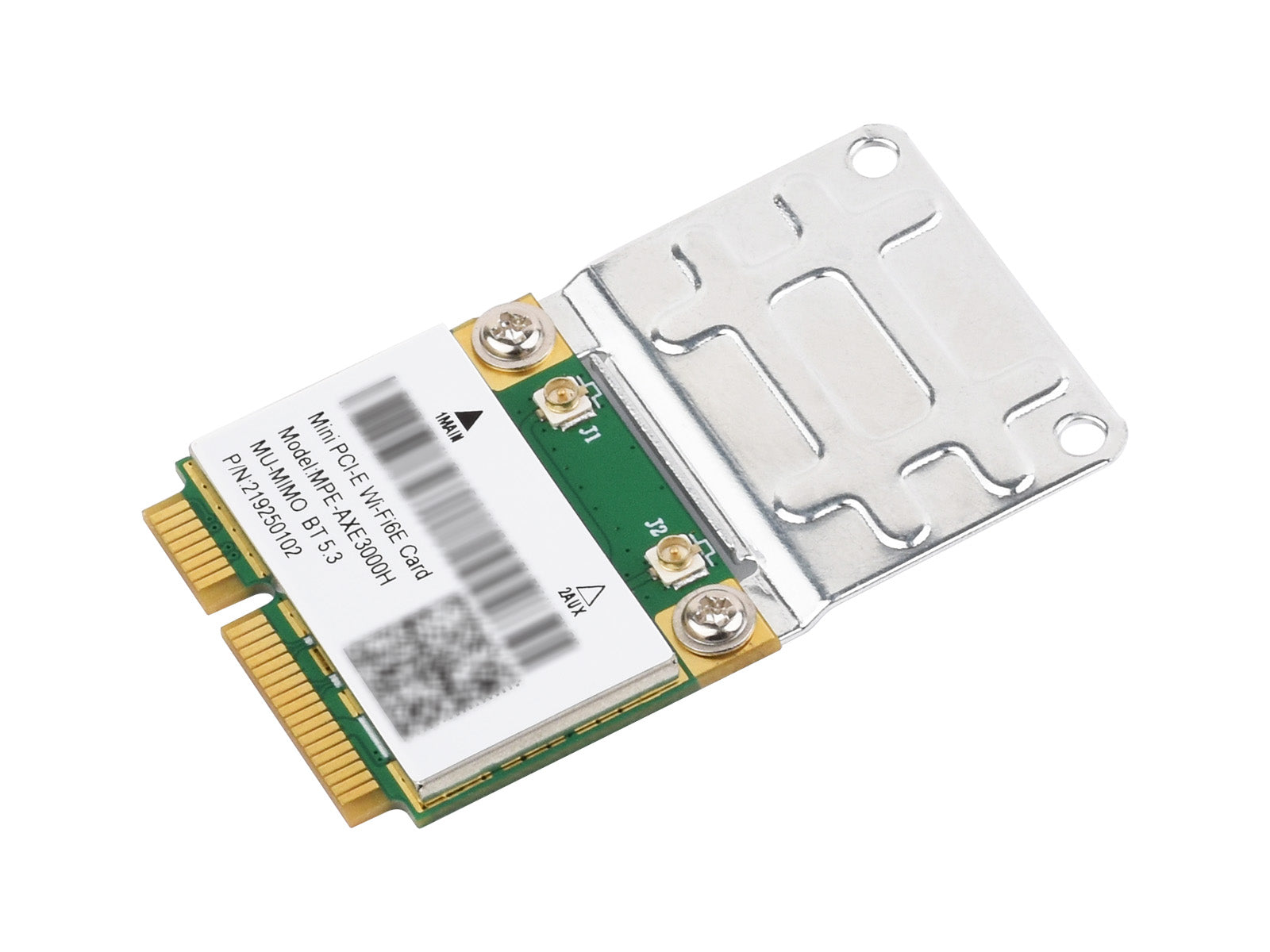

5. MINIPCIe mounting bracket × 1
6. Screws pack × 1

1

2

3

4

5

6
