SKU:WSAL23414

WS2812 Digital RGB LED Strip, High brightness, Energy-saving And Low power consumption, Cuttable and Programmable

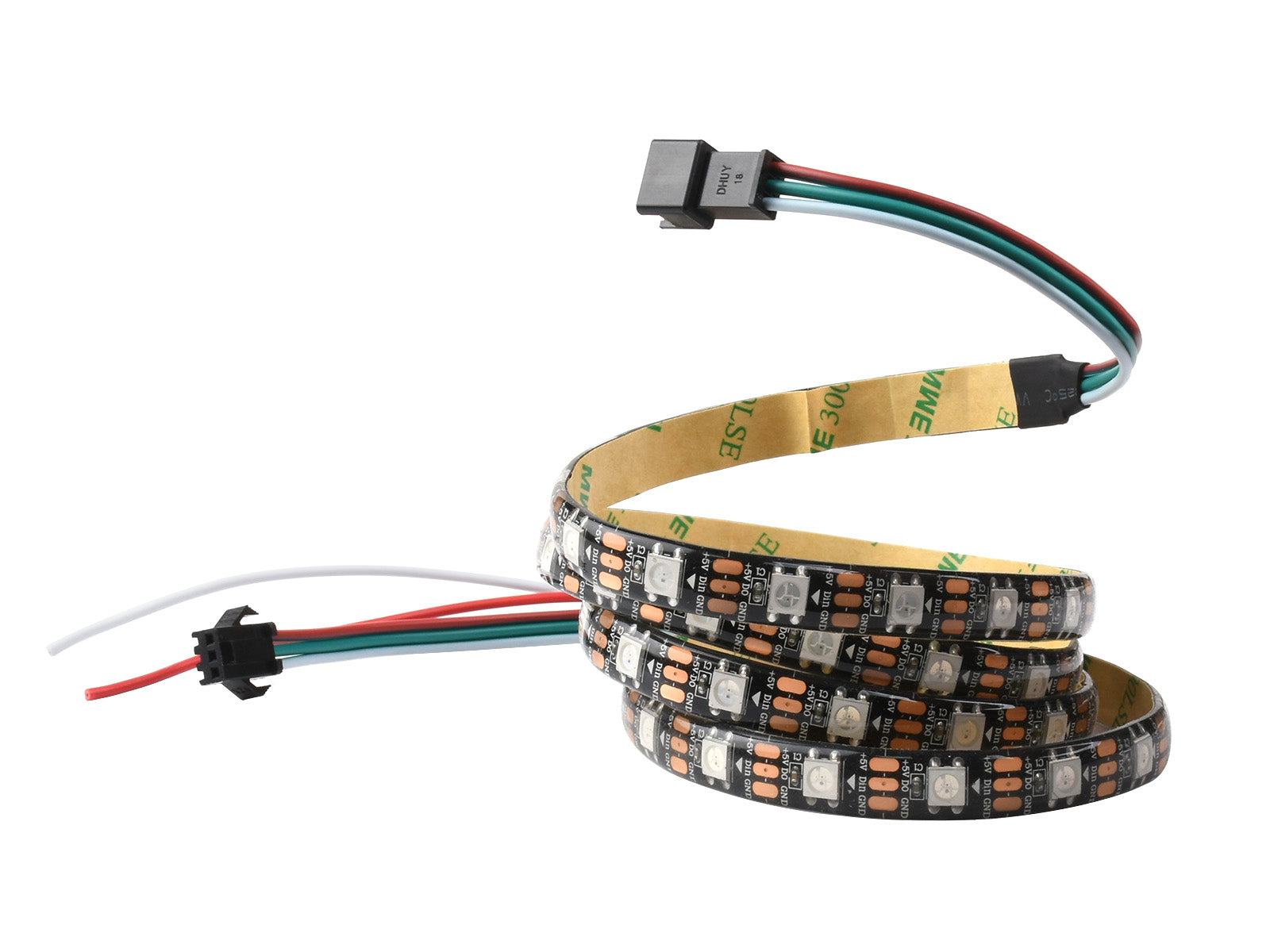

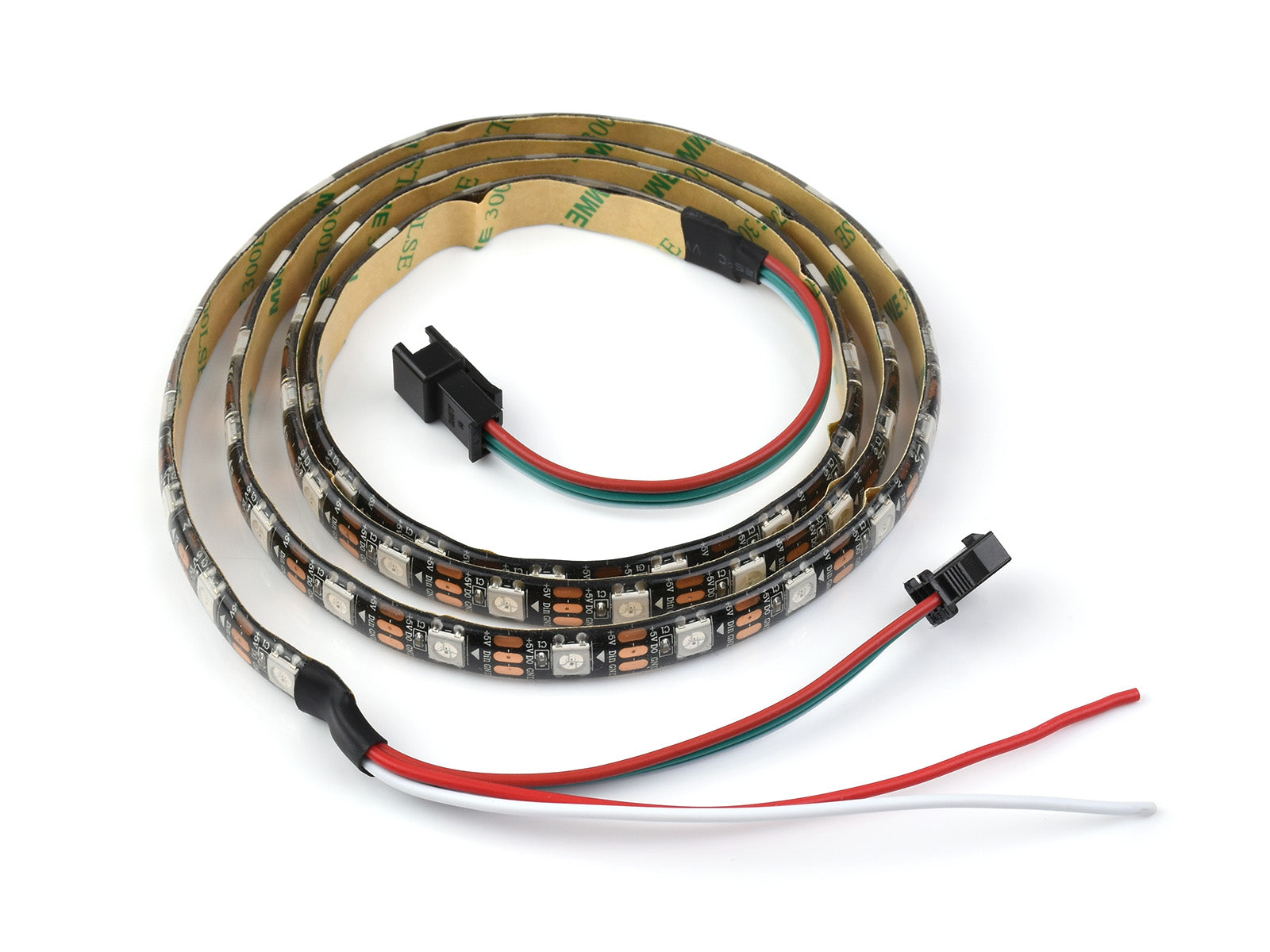

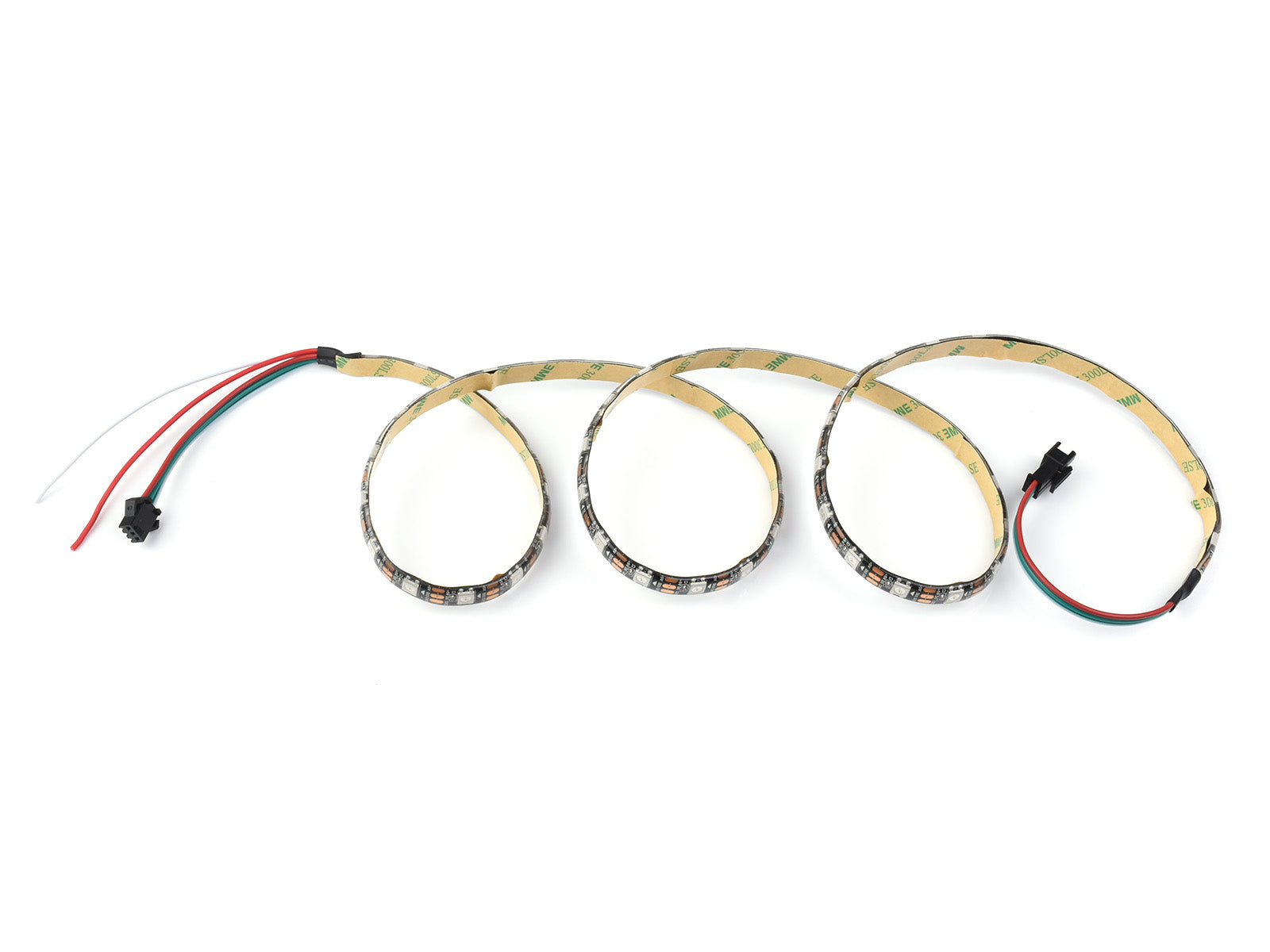

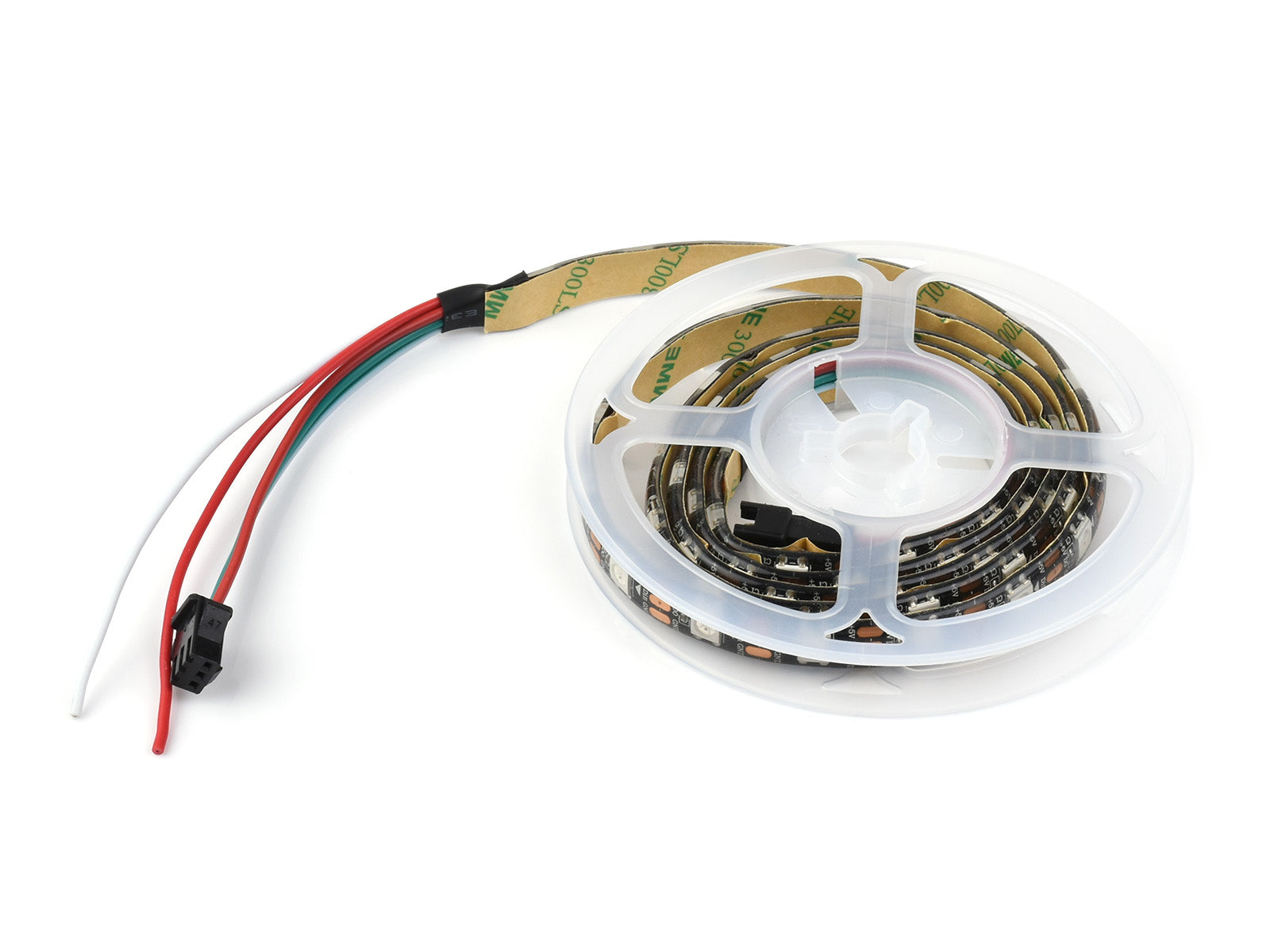

WS2812 Digital RGB LED Strip

Programmable LED, Natural & Bright Color

Energy-saving, Colorful And Widely Used

Specifications

LED type	5050	IC	WS-2812B
Voltage	5V	Color	RGB
PCB width	10mm	Beam angle	120°
Operating power	0.3W/LED	Length	1m/roll
Operating temperature	-25~80℃	Grey scale	256 Adjustable (per color)
LED Quantity	60 LEDs/M	Degree of protection	IP65
Connection	3PIN SM connector cable + 2PIN voltage adding cables	Installation method	with 3M double-sided tape on the back
Cable definition	Red cable (5V positive), white cable (5V negative) and green cable (DATA signal)

Product Details

* Note: Please cut it from the solder joint to avoid or reduce unnecessary waste and damage.

Flexible and Bendable

High light transmittance and flexible, insulated and anti-leakage, can be bent into any shape

IP65 protection rating

Covered with high-transparency resin to protect against small water jets

Installation Mode

Product Demonstration

Product Show

Dimensions

Resources & Services

---

WIKI:www.waveshare.com/wiki/RGB-5050-5V-IP65-60D-1M

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

RGB-5050-5V-IP65-60D-1M x1
