XBee USB Adapter

XBee USB Adapter Overview

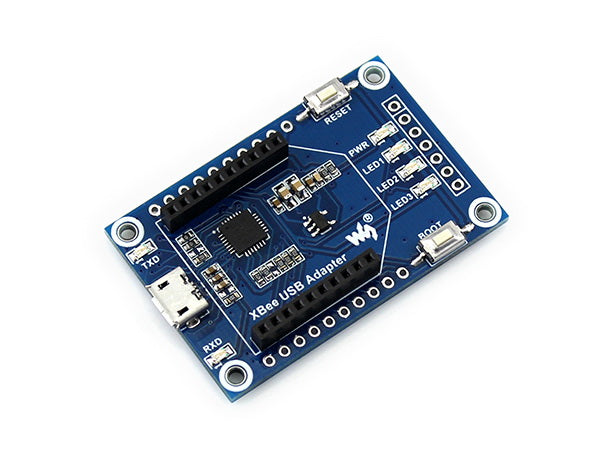

XBee USB Adapter is a UART communication board which supports XBee connectivity, features UART interface, USB interface, and onboard buttons/LEDs, provides an easy way for developing/debugging.

It can be used in the following situations :

• Test XBee modules: onboard buttons/LEDs for easy testing
• Program/Configure XBee modules: make it easy to program/configure the XBee modules frequently
• USB to UART module: features CP2102, provides UART interface and power output interface, connect it to your system easily

Note : XBee modules above refer to modules with XBee-compatible interface, like: Core2530 (B),Dual-mode Bluetooth, etc.

Photos

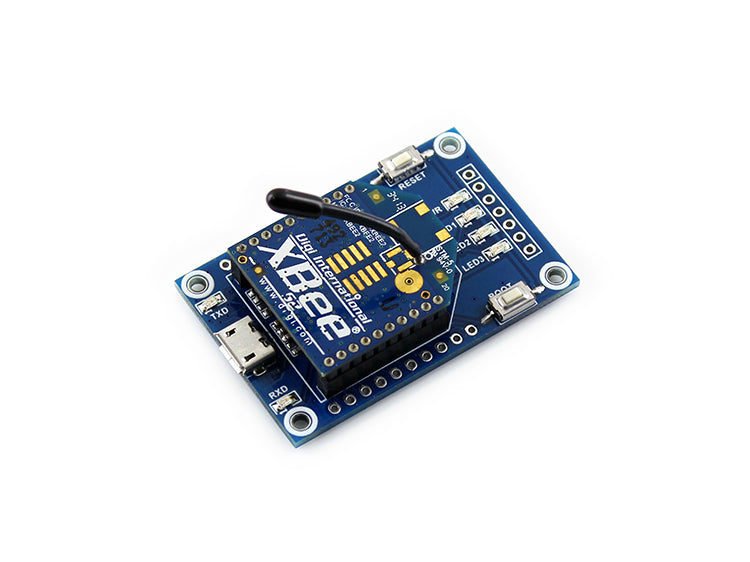

Note : the XBee/ZigBee modules in the photos are NOT included.

Pin Definition

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/XBee_USB_ Adapter

Lieferumfang

1. XBee USB Adapter x 1
2. 20pin male pinheader x 2
3. 40pin female pinheader x 1
4. USB Type A Plug to Micro B Plug Cable x 1
